Zaptec Go Asphalt Black 22kW

Zaptec Go Asphalt Black, 3-phase, 22kW, socket, RFID, Wi-Fi & 4G . Note: For full installation functionality (such as customer transfer, Zaptec Sense, and registering the charging station in the Zaptec Portal), you need an installer account.

• 22 kW at 32 A/3-phase (TN networks); 12.7 kW at 32 A/3-phase (IT networks); 7.4 kW at 32 A/1-phase IT/TN.
• Color: Asphalt Black
• Max. 40A
• Socket with Type 2 connection with female electronic lock, can be permanently locked by the user.
• Integrated 3-phase electricity consumption meter Calibrated and tested to meet the accuracy requirements of a Class B Active electronic electricity consumption meter as written in 2014/32/EU (MID) Annex V Implemented in EN 50470-1:2006 and EN 50470-3:2006.
• IP54
• WIFI or 4G LTE-M
• Weight 1.3kg

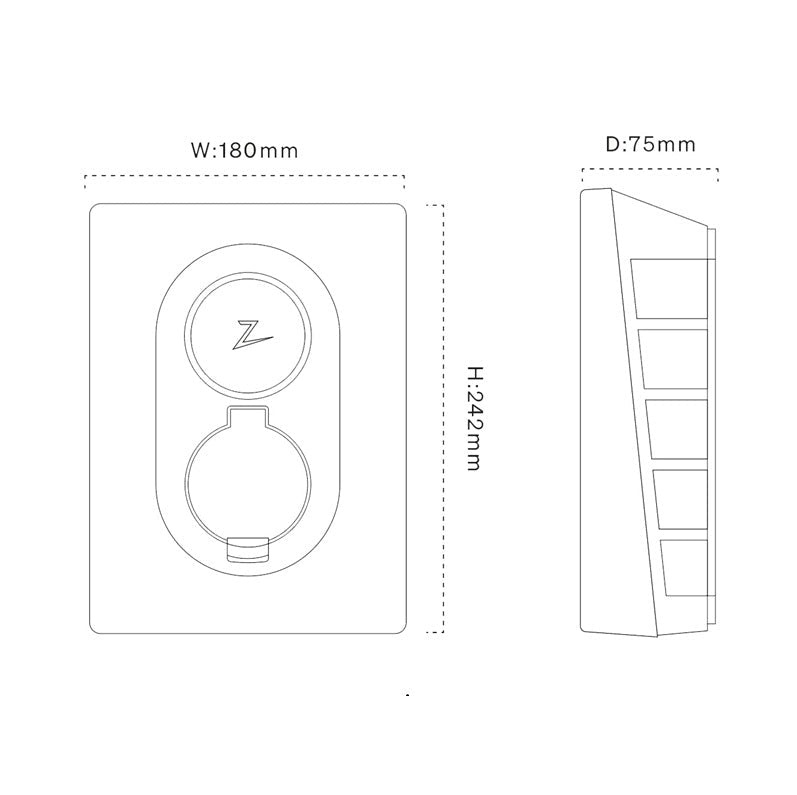

• Dimensions 242 x 180 x 75mm

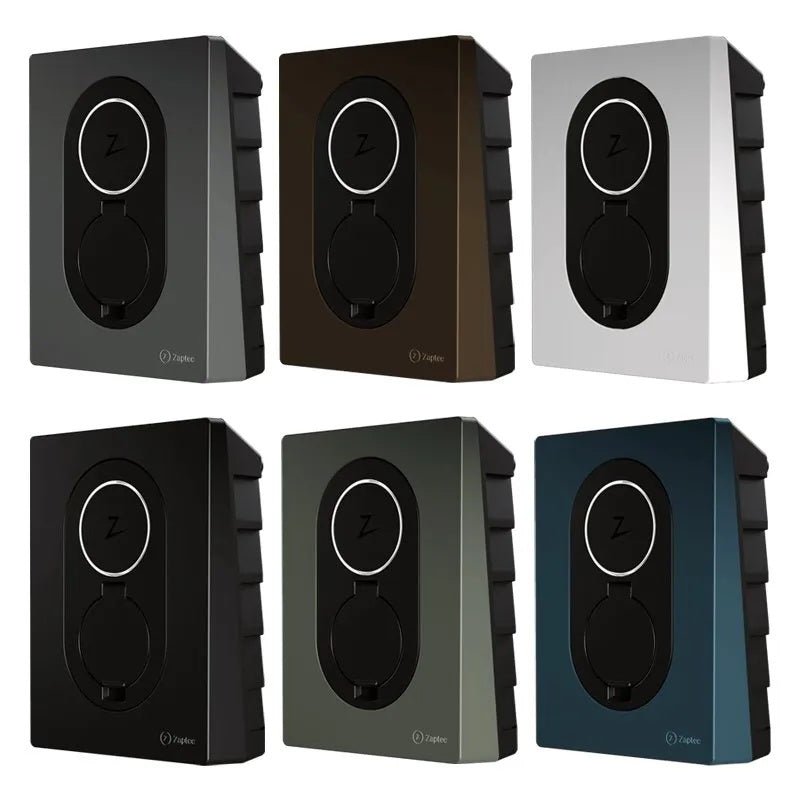

The Zaptec Go lets you charge your electric car sustainably whenever it's convenient for you. This beautifully designed, simple home charging station is available in six colors and is the size of a tablet, taking up minimal space. Perfect for your garage or parking spot. The Zaptec Go connects to all electric vehicles and homes and adjusts its maximum charging capacity to your car's capacity.

Thanks to its clever design, it's possible to install three Zaptec Go charging stations at home, and you can charge up to 10 times faster than with a standard socket. Moreover, the Zaptec Go meets the highest safety standards. For example, it features an integrated Type B residual current device that trips the circuit breaker if there's a ground fault in the vehicle or charging cable. It also performs calibrations and self-tests before each charging session and is equipped with multiple internal temperature sensors.

The Zaptec Go is always online via Wi-Fi or 4G LTE-M and stays up-to-date with the latest features and updates for free thanks to its own cloud service, Zaptec Portal.

Installation manuals can be found on the Zaptec website.

Datasheet (NL)

Manual (EN)
