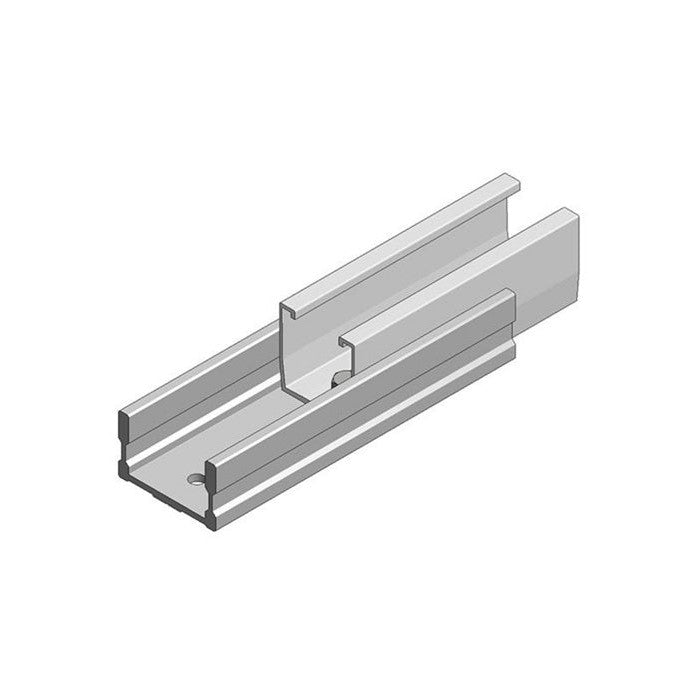

Van der Valk Extension Set Solar Frame 1010 - 1046mm (only for the old version frame ValkDouble, ValkTriple, ValkQuattro before 2026).
To use panels from 1065 to 1134mm for the ValkDouble and ValkTriple, and for ValkQuattro from 1065 to 1100mm, these frames need to be extended. An extension set is required per solar frame for this purpose. Please note! For the ValkTriple and ValkQuattro, two holes must be manually drilled on the side of the extension set. The VDV757050 is suitable for a solar frame with a panel width of 1010 - 1046mm.
ValkDouble, ValkTriple, ValkQuattro
The ValkDouble, ValkTriple and ValkQuattro series from Van der Valk are suitable for Landscape configuration with two, three or four panels and have been developed according to European standards. The ValkTriple is ideal for garage boxes and the ValkQuattro for apartment buildings. The ValkDouble can be used in both cases. In addition, all three can be used as ground installations. The Double, Triple and Quattro include universal middle and end panel clamps (H 28-50 mm) and a low height due to a small fixed tilt angle of 10º. The Double and Triple are suitable for panel dimensions of 1800mm - 1100mm. An additional extension set is available for panel widths up to max. 1134mm. The Quattro is suitable for panel dimensions of 1800mm - 1005mm. An additional extension set is available for panel widths up to max. 1100mm.
