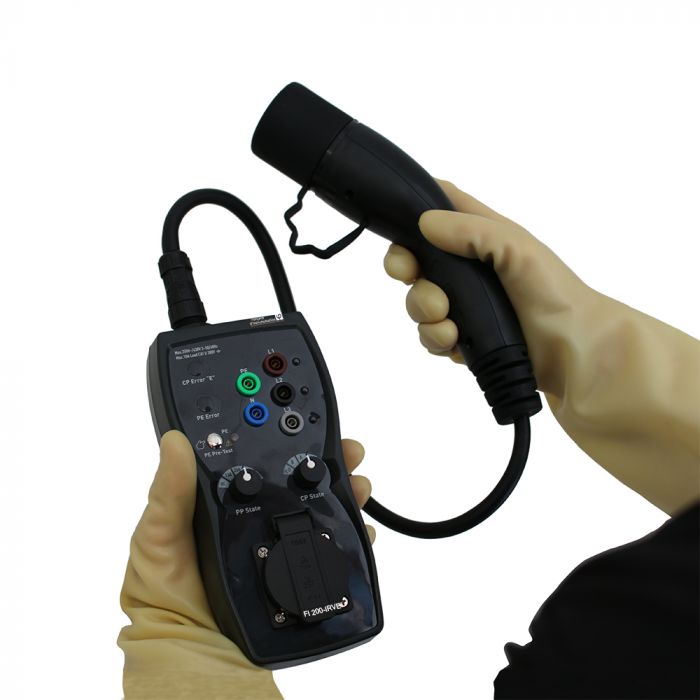

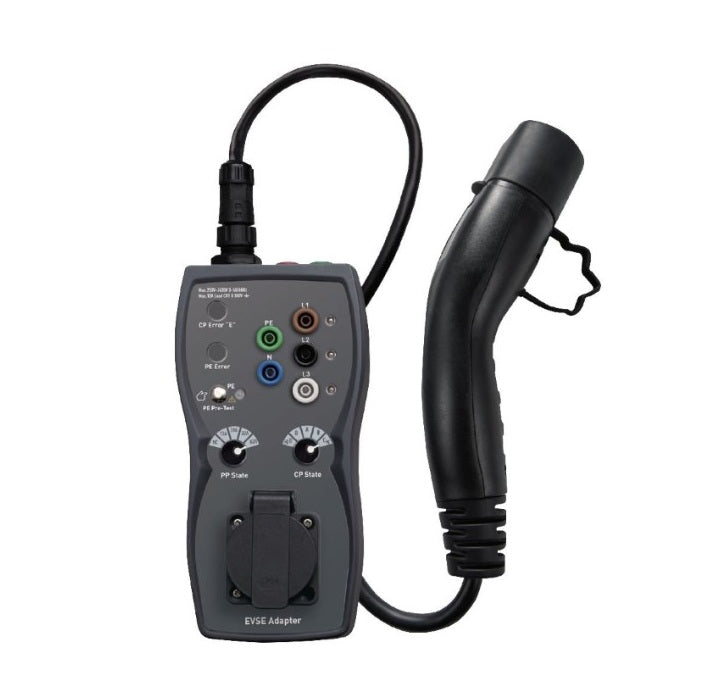

Turbotech Tester for charging stations TTEV200

TTEV200 - Test adapter for electric vehicle charging stations. Suitable for car charging stations with charging mode 3.

Features:

• PE pre-test: This safety function allows the PE conductor to be tested to detect the possible presence of dangerous voltage with respect to earth.
• Proximity Pilot Status (PP) “Cable Simulation”: The PP status rotary switch allows the adapter to simulate different current capacities of charging cables.
• Control Pilot (CP) status “Vehicle Simulation”: With the CP status rotary switch different charge states can be simulated.
• Simulation of the CP error “E”
• PE fault simulation (earth fault)

• EV connectors for type 2 and type 1
• L1, L2, L3, N and PE test terminals for connecting a test device such as an installation tester to perform safety and function tests.
• Terminals for the output of the CP signal to check the communication between the adapter (= simulated electric vehicle) and the charging station.
• Phase indication separated by three LED lights to easily check if voltage is present.
• Socket that allows you to connect an external load to check whether the electricity meter is working and counting correctly.
• Protection index IP40 - Protection against dust and splashes of water.
