Stäubli torque wrench set MC4 32.0065

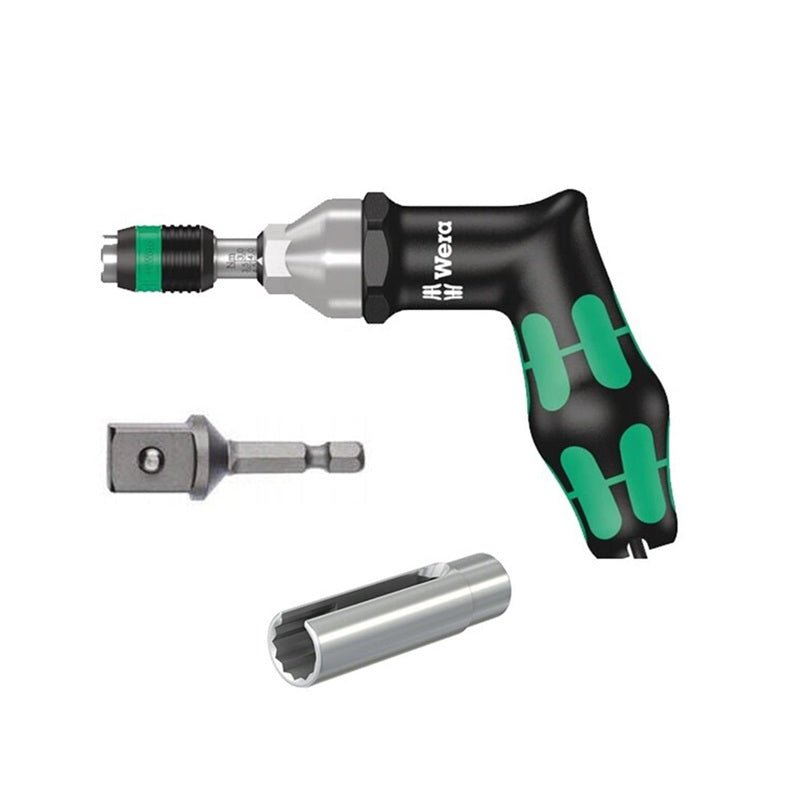

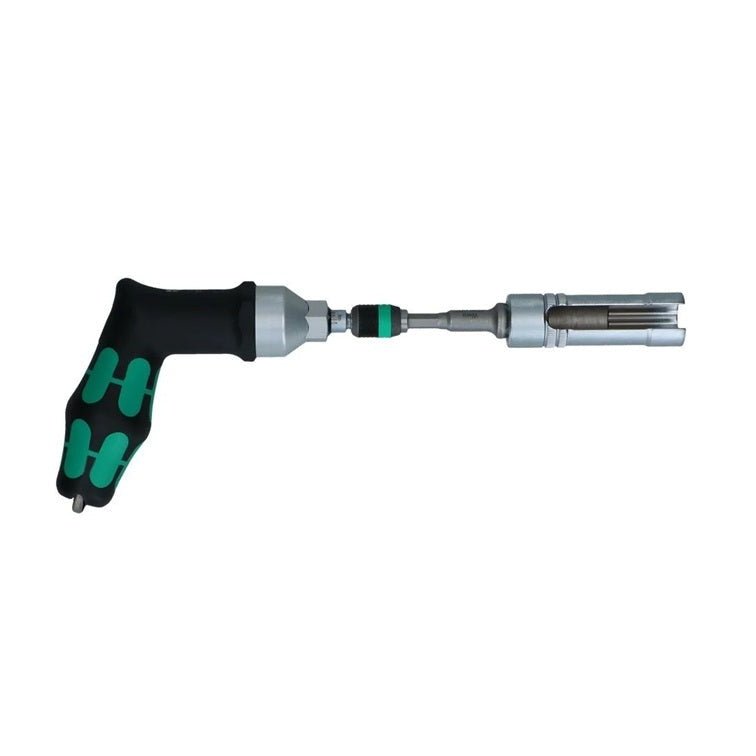

Stäubli Torque wrench set incl. UZ1045 / UZ1043 / 32.6006 PV

• Range: 3 - 6 Nm
• Accuracy: 6% (and ISO 6789)
• Scale: Numerical scale for torque values

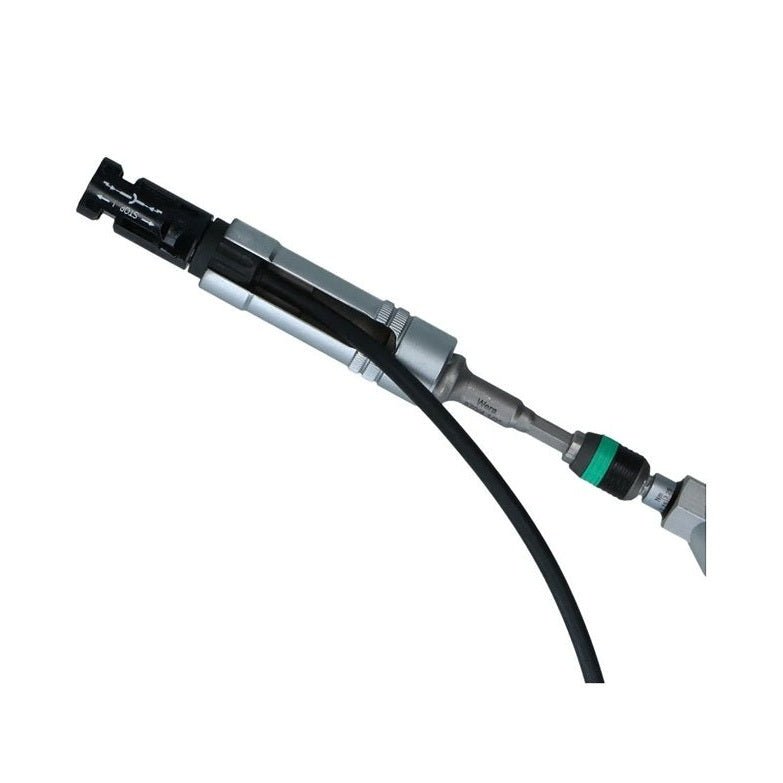

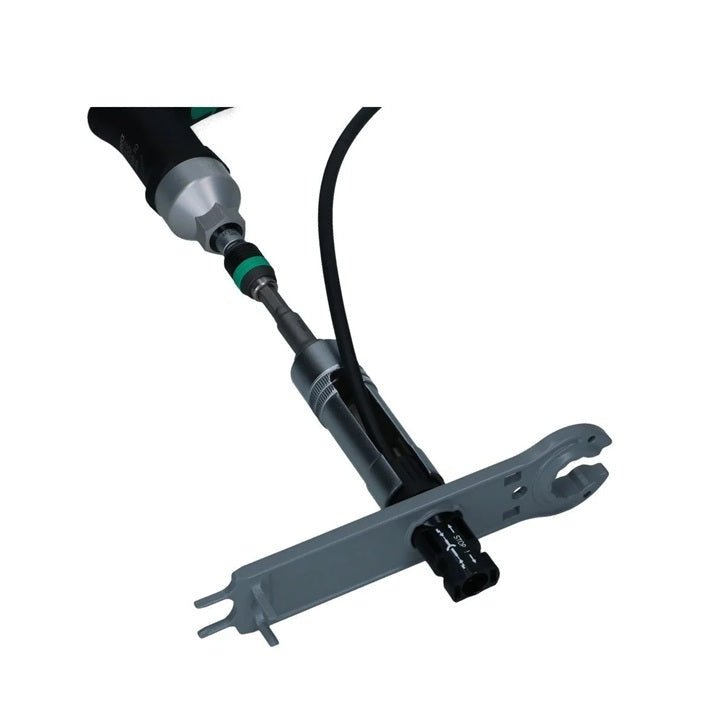

For manual mounting of original MC4 and MC4-Evo 2-cable coupling. Adjustable torque tool set with special design: easy insertion and removal, universal grip and one-handed use. Comes with a special multi-component pistol grip that ensures a secure and comfortable fit in the hand and powerful power transfer.

The tightening torque must be suitable for the solar cables used. The standard values are between 3.4 Nm and 3.5 nM. Stäubli recommends using a calibrated torque wrench for installation.

Datasheet
