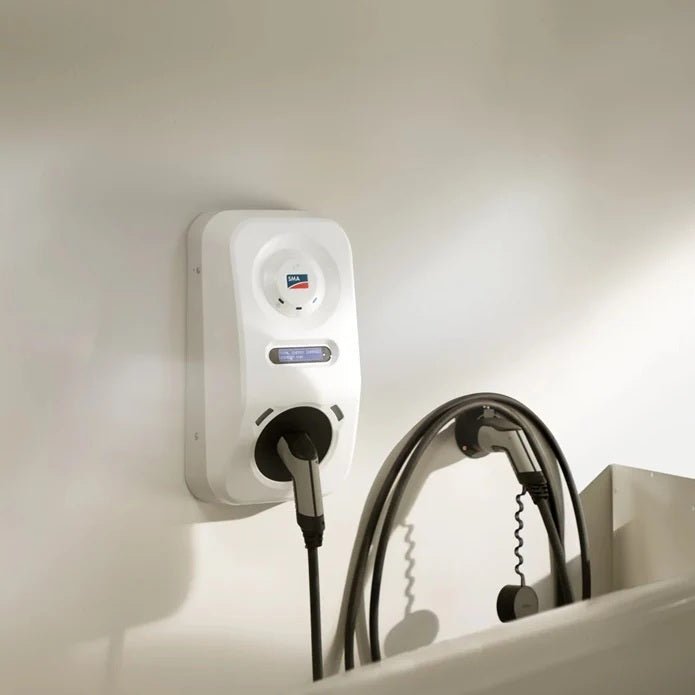

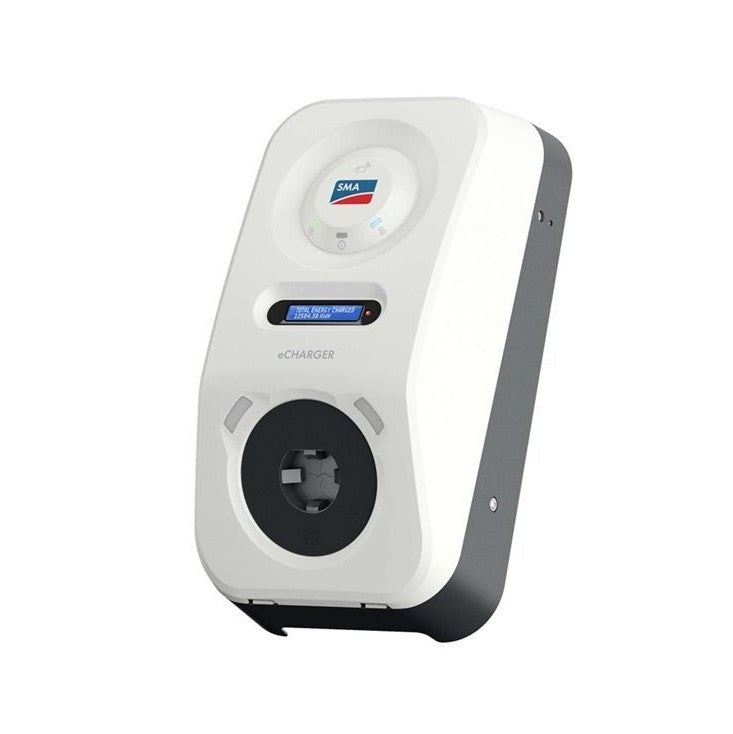

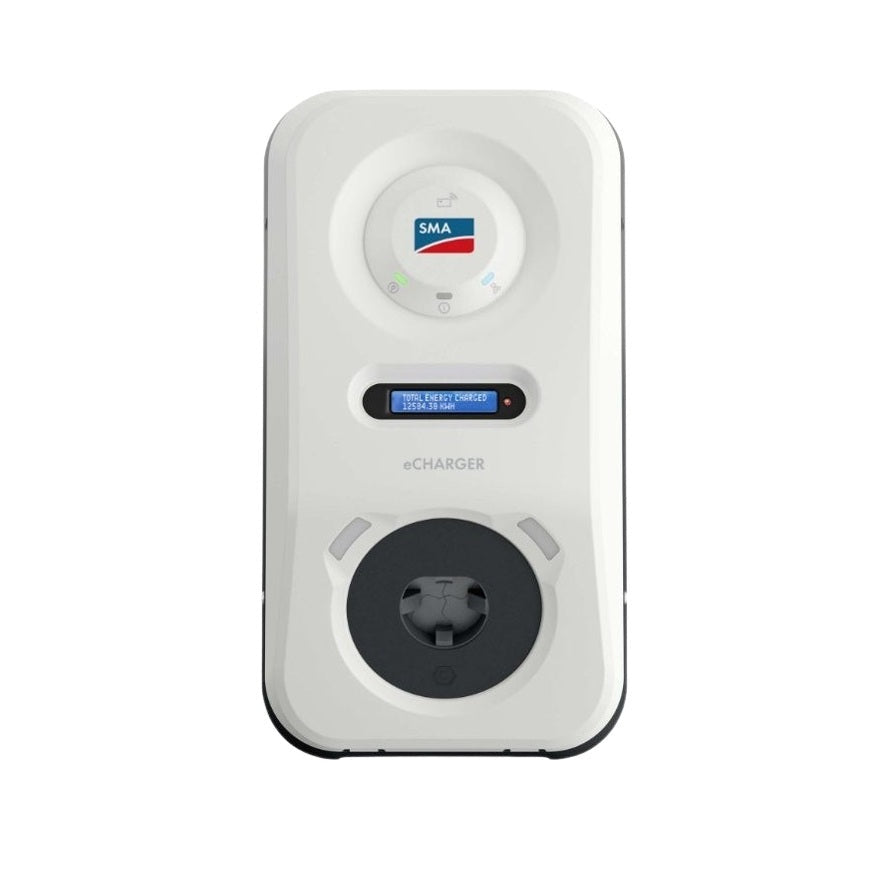

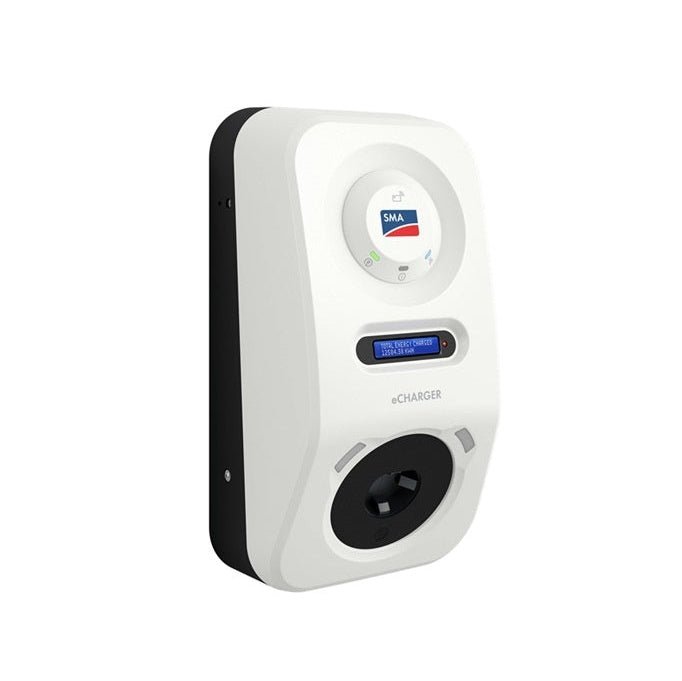

SMA eCharger 22KW

• Charging capacity 1.38 to 22kW
• 1 or 3 phase, max. 32A per phase
• 5 year warranty
• Suitable for both standalone use and integration with the Sunny Home Manager 2.0 for PV surplus charging and energy management
• Support for WiFi, RS485, and Ethernet. OCPP 1.6 JSON compatible for back-end communication
• DC fault current detection (6 mA) and compatible with external earth leakage protection (type A)

The SMA eCharger 22kW 3-phase is a smart EV charger optimized for solar power. With charging capacities of up to 22 kW, automatic phase change and WiFi support, this charger ensures efficient and flexible charging of electric vehicles. Compatible with the SMA Sunny Home Manager 2.0 for PV-optimized charging and energy management. Including automatic phase change and boost function for faster charging.

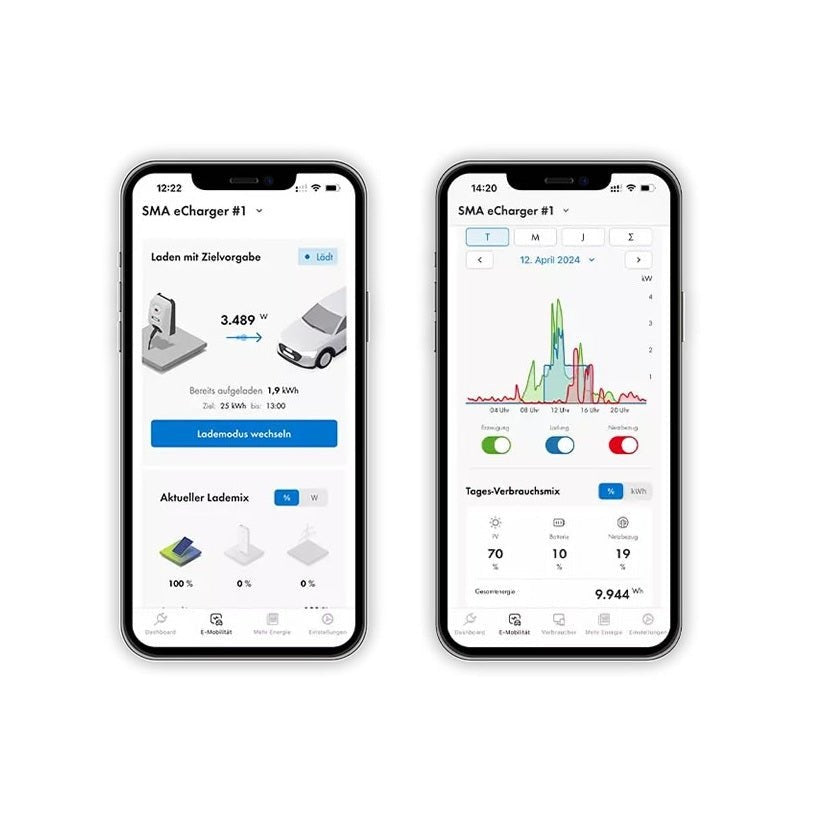

The intelligent charging modes enable prediction-based operation, adapted to individual behaviour. Thanks to automatic phase change, electric vehicles can be charged with electricity that you have generated yourself, even when there is little solar energy being produced at the time. The unique combination of grid power and single-phase solar power allows vehicles to be charged up to twice as fast as with standard wallboxes, while complying with all regulations.

Installation and operation are flexible, safe and convenient thanks to SMA Smart Connected and a 5-year warranty. The SMA eCharger is also equipped for the future - this is guaranteed by the simple adaptation to dynamic tariffs and the option of bidirectional charging with alternating current (AC-bidi).
