Shelly Pro 3EM-3CT63 energy meter

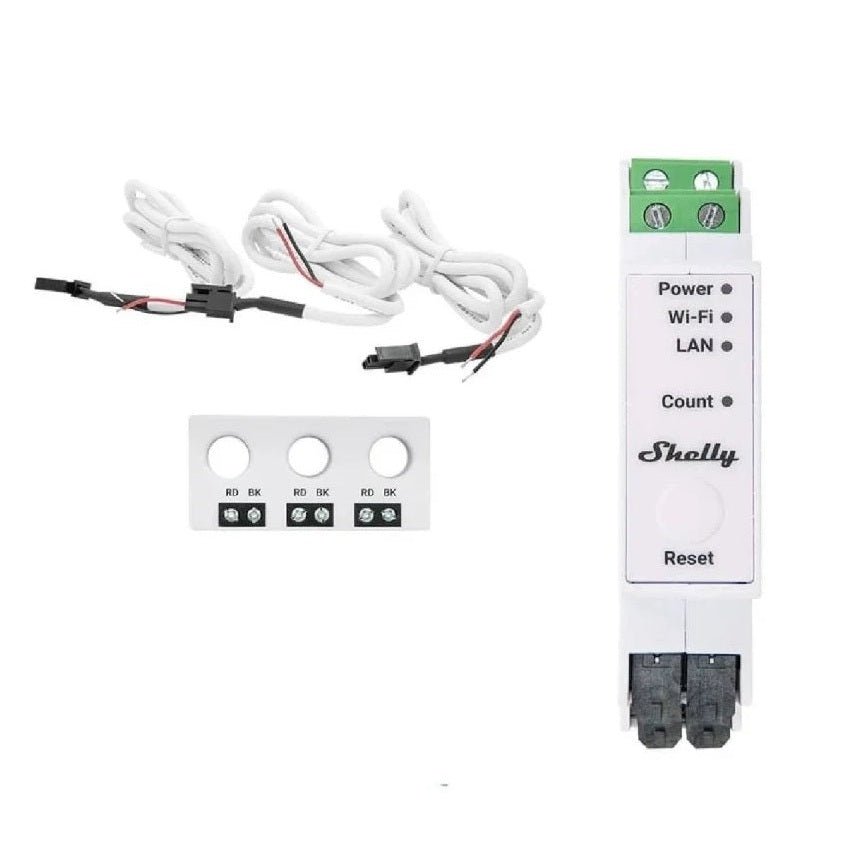

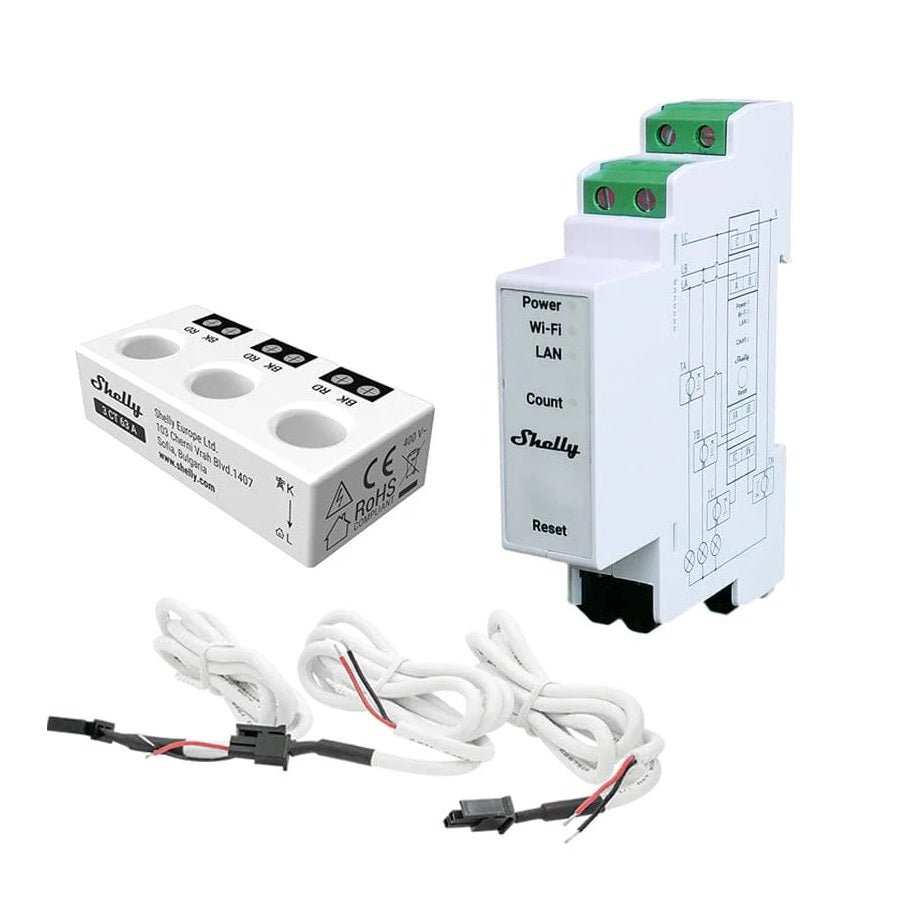

Shelly Pro 3EM-3CT63 next generation DIN rail mountable single or three phase energy meter with a combined 63A, three phase current transformer.

The Shelly Pro 3EM-3CT63 accurately measures energy consumption and can be used in a wide range of applications, including monitoring industrial machinery, saving energy in homes or offices, and managing electrical loads.

IMPORTANT! This device does not have a built-in relay. The contactor is controlled by a Shelly Pro add-on connected to the Shelly Pro 3EM-3CT63.

• 4-quadrant measurement

• DIN rail mounting

• Various connection options: Single- or three-phase installations

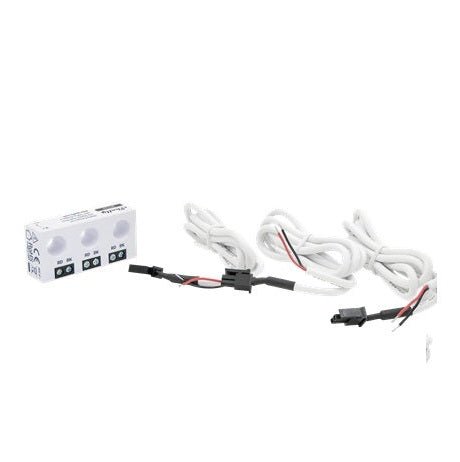

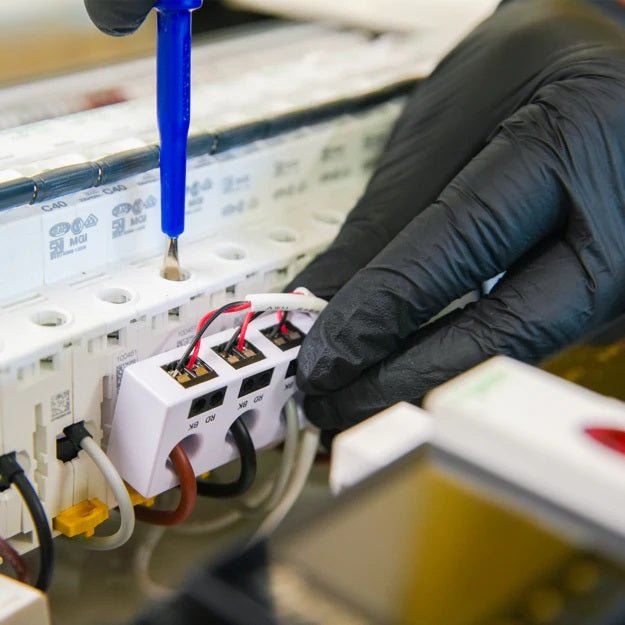

• Current transformer connection: Non-contact measurements

• Optical pulse display of energy consumption

• Real-time clock: Stored data retains correct timestamps even if the internet connection is lost.

• Datalogs: Up to 60 days of data is stored on the device and can be retrieved later.

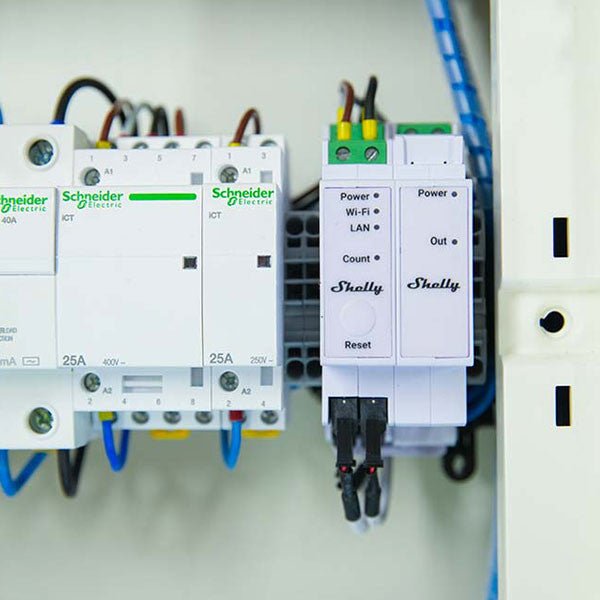

• External contactor control: Loads can be controlled based on device automation or scripts. Available with the Shelly 3EM Switch add-on.

• Compatible with photovoltaic energy

The Shelly Pro 3EM-3CT63 records both accumulated energy and instantaneous values ​​of voltage, current, active power, and apparent power per phase/channel in real time. The data is stored in non-volatile memory and can be retrieved at one-minute intervals for up to 60 days. The meter also features a real-time clock that ensures the time is always set correctly, even if the connection to an SNTP server is lost.

• LAN, Wi-Fi, and Bluetooth connectivity: LAN connectivity for high security and reliability. Simultaneous use of Wi-Fi and LAN as a backup if needed.
• 4-quadrant measurement: Measurement of capacitive and inductive load types of imported and exported active energy.
• Accuracy class B (active energy): The Shelly Pro 3EM-3CT63 has a measurement accuracy of 1 percent.
• Power metering: Monitors single-phase electrical systems with up to three measuring points simultaneously. Fast notifications and at least 60 days of 1-minute recordings are stored.
• MODBUS support: Enables quick and easy implementation in existing industrial facilities.
• Scripting Features: The Shelly Pro 3EM-3CT63 fully supports mJS scripting, allowing you to create additional features and functionality.

• Internal temperature sensor: Yes

• Voltmeter (RMS for each phase): 100-260 V

• Voltmeter accuracy: ±1%

• Current meters (RMS via current transformers for each phase and neutral): 0-63 A

• Compatible CT: 3CT63

• Ammeter Accuracy: ±1% (2-63 A), ±2% (1-2 A), ±5% (0-1 A)

• Power and energy meters: Active and apparent power, active and apparent energy, power factor, fundamental active and reactive energy

• Channel-to-channel calibration. Minimum load: 500 W per channel

• No-load threshold: 30 VA per channel

• Measurement data storage: Minimum 60 days with a data resolution of 1 minute

• Data export: CSV for PQ-registered values, export in JSON format via RPC

• WLAN
• Bluetooth Protocol: 4.2

• WebHooks (URL actions): 20 with five URLs per hook

• Wi-Fi range extender: Yes

• BLE gateway: Yes

• Scripting: Yes

• MQTT: Yes
