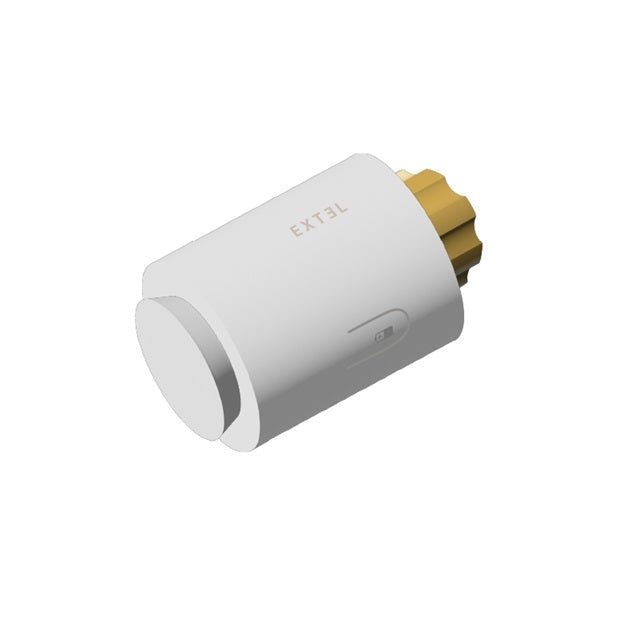

Qbus wireless Zigbee thermostatic valve for radiators

The QWZ-RAD is a wireless motorised radiator thermostat that can be linked to the Qbus Wireless Interface with Zigbee protocol (QWI/ZB). This allows you to easily realise multi-zone heating control in situations where a wired solution is not possible, feasible or undesirable. Multi-zone heating control provides an average saving of 30%.

Thanks to the connection with the Qbus controller via the QWI/ZB, numerous applications and configurations are possible. This makes it possible to use various control options within the Qbus system, but also online with, for example, Qbus Control.

Multiple QWZ-RAD can be placed in the same zone. The radiator thermostats in the same zone are synchronized by the Qbus system, so that a clear and simple operation and control is realized. The radiator thermostat (QWZ-RAD) is easy to operate and configure with the round rotary and push button.

An energy-efficient LED display is integrated, so that the selected temperature can be read during operation. The QWZ-RAD is powered by 2 replaceable AA batteries. Under normal conditions and average use, you only need to replace the batteries once a year.

You can mount the QWZ/RAD on taps using the M30 x 1.5 nut. There are also 3 adapters included for mounting on tap bodies from Danfoss (RA), Giacomini (1/2” + short transmission) and Caleffi (1/2”).
