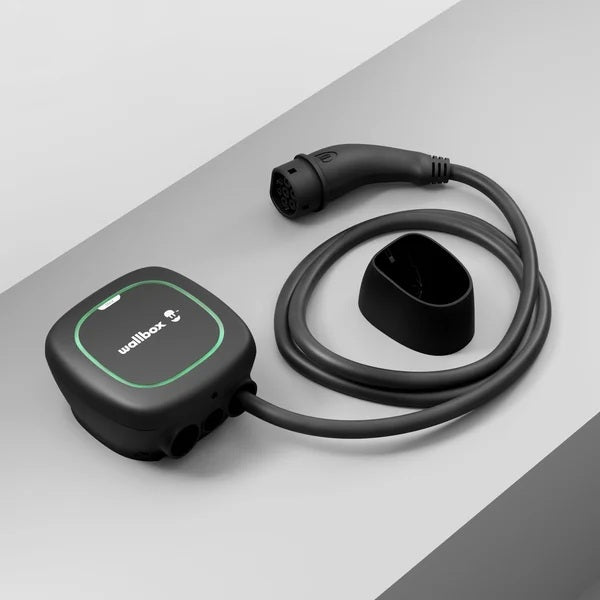

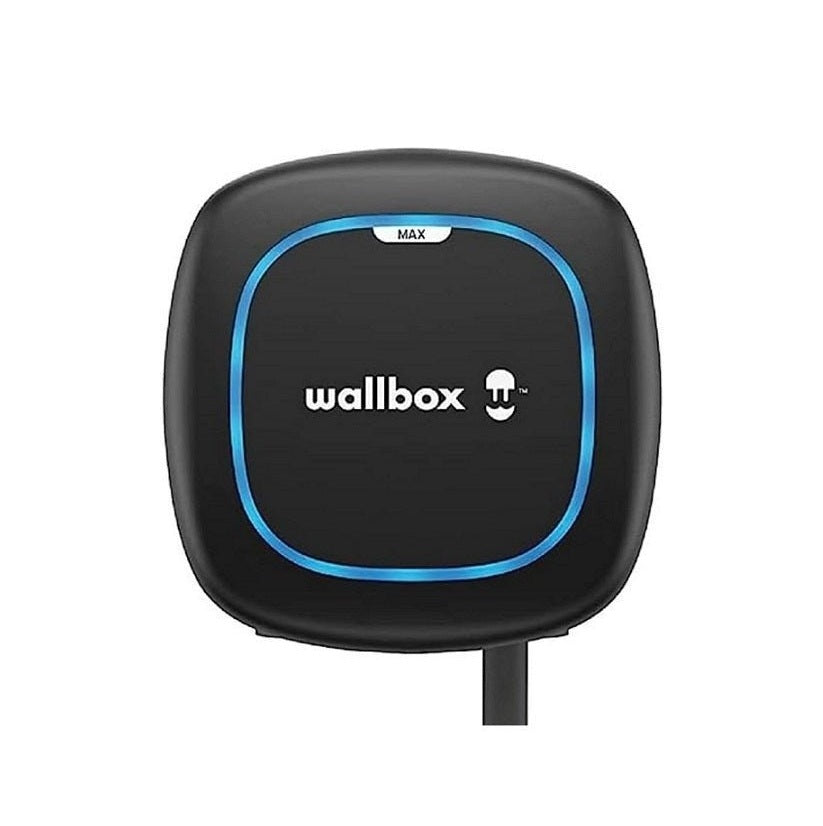

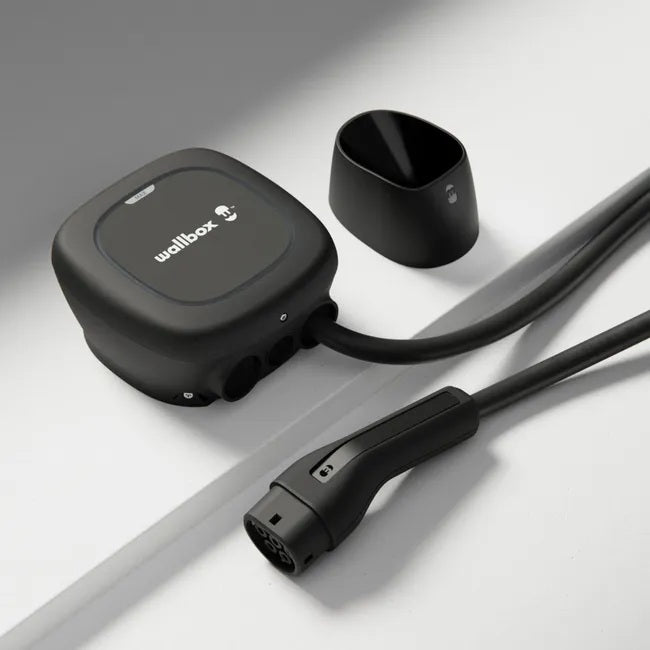

Pulsar Max 22kW including 7 meter charging cable type 2 - black - PLP4-M-2-4-9-002
The Wallbox Pulsar Max is a compact and powerful charging station with a charging capacity of up to 22 kW. Equipped with a fixed 7-meter Type 2 cable, this charger offers maximum flexibility for daily use. Thanks to its efficient charging technology, the Pulsar Max is suitable for both residential and commercial applications and supports safe and fast charging of electric vehicles.
The housing is robust and weatherproof (IP54), making it suitable for indoor and outdoor installations. The integrated cooling system and intelligent power control guarantee stable performance and a long lifespan. The Pulsar Max is designed for easy use and seamless integration with energy management solutions.
The new Wallbox Pulsar Max is equipped with a 2% accurate energy meter and supports solar charging. The charger automatically switches between 1-phase and 3-phase, ensuring optimal use of generated solar power.
- Adjustable power between 3.7 and 22kW (minimum 6A) depending on how the charging station is connected; both 1-phase and 3-phase are possible. This makes the Pulsar Max a very versatile device.
- Compact & modern design.
- Option to expand the charging station with Dynamic Load Balancing via Power Boost. This allows your charging station to live monitor your home's energy consumption and automatically adjust your EV's charging session to the capacity of the local electricity grid.
- Eco-Smart function; for charging via private solar panels. (Wallbox Power Boost required).
- Via the Power Sharing functionality of the Wallbox Pulsar Max, you are able to connect multiple charging stations to one shared grid connection. The Pulsar Max chargers will distribute the available power among themselves as optimally as possible.
- OCPP for backend communication: The Open Charge Point Protocol (OCPP) regulates communication between a Wallbox charging station and a backend system. Thanks to OCPP 1.6, you can easily control one or more charging stations with a single backend system, allowing you to view individual charging processes and manage users, for example.
- No back office subscription is required for this charger. Management can be done via the Wallbox app, via the myWallbox portal, via Wi-Fi or Bluetooth. Configure, monitor, and manage your Pulsar Max from the myWallbox portal via a mobile app or the web portal. With the myWallbox portal, you get real-time information on consumption, charging time, and energy costs. You can set the charging power and lock (and unlock) the charging station to prevent misuse.
