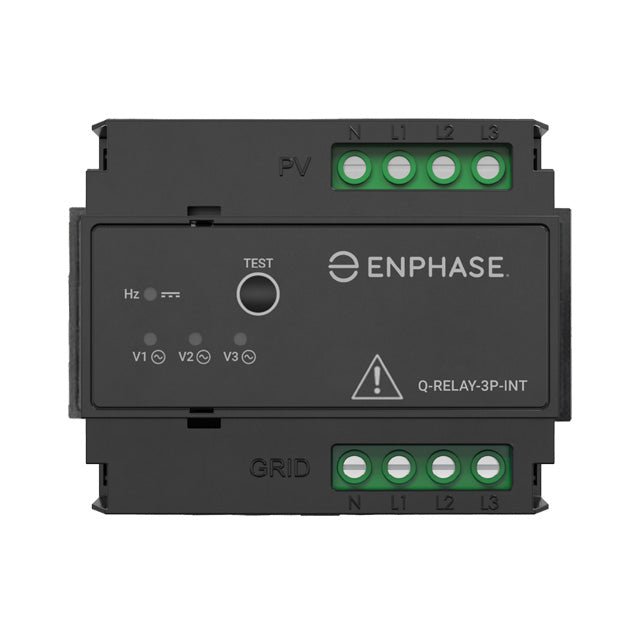

IQ Relay (3-phase)
SKU:
Q-RELAY-3P-INT
Availability:
In Stock
- €175,00
- €175,00
- Unit price
- per
Subtotal:
€175,00
In Enphase IQ installations, the multiphase IQ Relay functions as a grid monitoring and disconnection device and includes a built-in phase coupler to distribute communication signals in power cables between phases. An external phase coupler is not required when the IQ Relay (3-phase) is installed. The IQ Relay physically disconnects the IQ Microinverters from the grid when abnormalities are detected or when required by grid regulations, and automatically reconnects when grid conditions become applicable.
- It can be set to monitor 1, 2 or 3 phases
- Ability to update remotely
- The 25 A load capacity ensures that multiple Microinverters can be connected per AC circuit
- Integrated communication with power cables
Technical specifications
- Protection class: IP20 (must be used in protected environment)
- Ambient temperature range: -40°C to +50°C
- Nominal input voltage: 230 Vrms
- Nominal input frequency: 50 Hz
- Conformity: EN 50549-1, VDE 4105, IEC 61010
- Number of phases: single, 2 or 3 phases
Compatibility
- IQ Microinverters
- IQ Cable
- IQ Gateway Metered and IQ Gateway Standard
