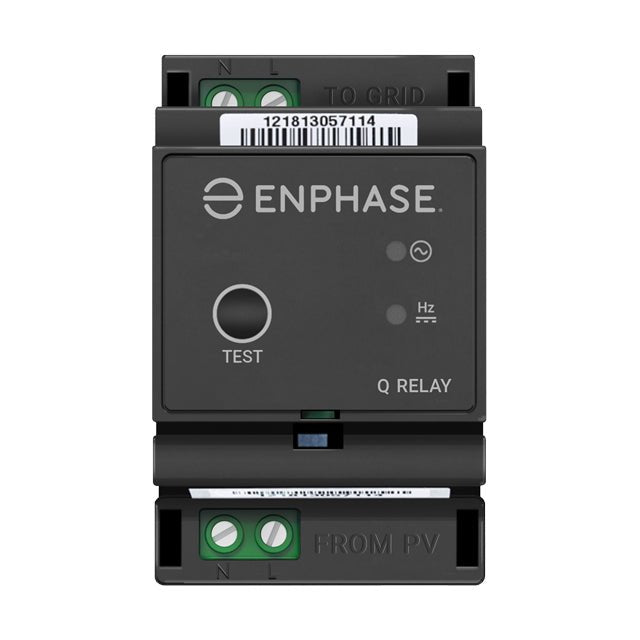

IQ Relay (1 phase)
SKU:
Q-RELAY-1P-INT
Availability:
In Stock
- €71,00
- €71,00
- Unit price
- per
Subtotal:
€71,00
Used for V/FRT and/or DCI compliance in countries where mechanical PV disconnection is required when using IQ Microinverters. This device contains a contactor suitable for interrupting the load capacity of the PV system. Mandatory in Belgium.
- Monitors only 1 phase
- Ability to update remotely
- The 20 A load capacity ensures that multiple Micro-inverters can be connected per AC circuit
- Integrated communication with power cables
Technical specifications
- Protection class: IP20 (must be used in protected environment)
- Ambient temperature range: -40°C to +50°C
- Nominal input voltage: 230 Vrms
- Nominal input frequency: 50 Hz
- Conformity: EN 50549-1, VDE 4105, IEC 61010
- Number of phases: Single phase
Compatibility
- IQ Microinverters
- IQ Cable
- IQ Gateway Metered and IQ Gateway Standard
