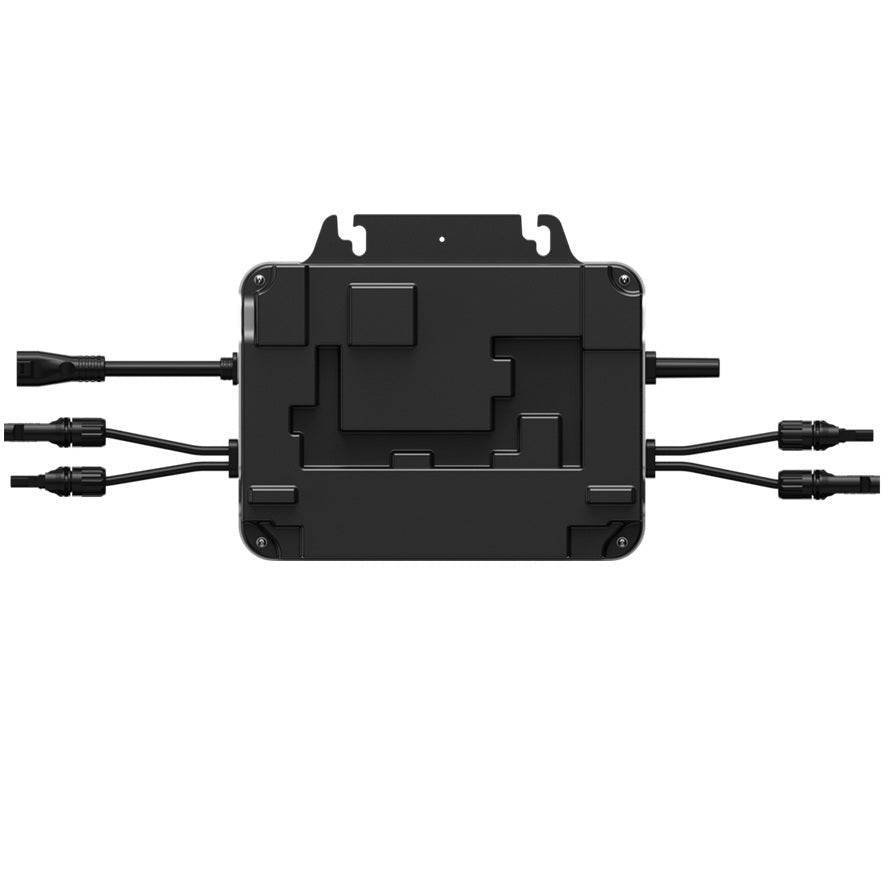

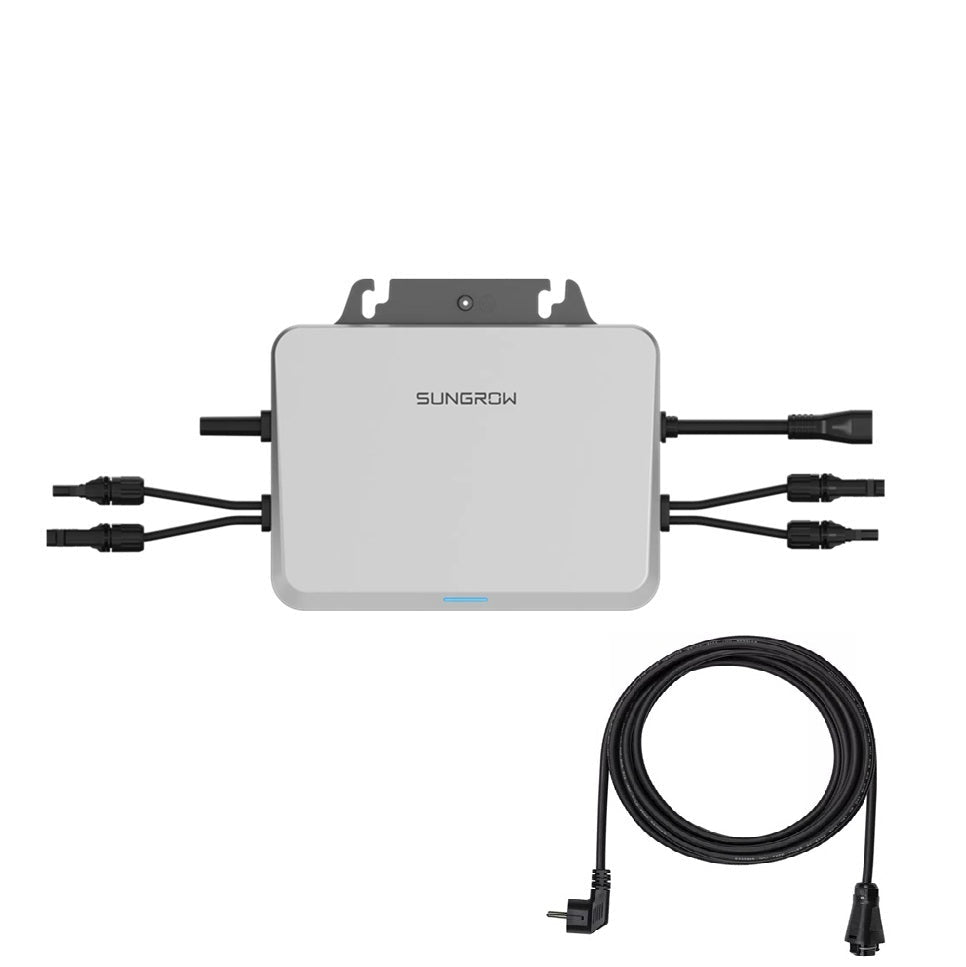

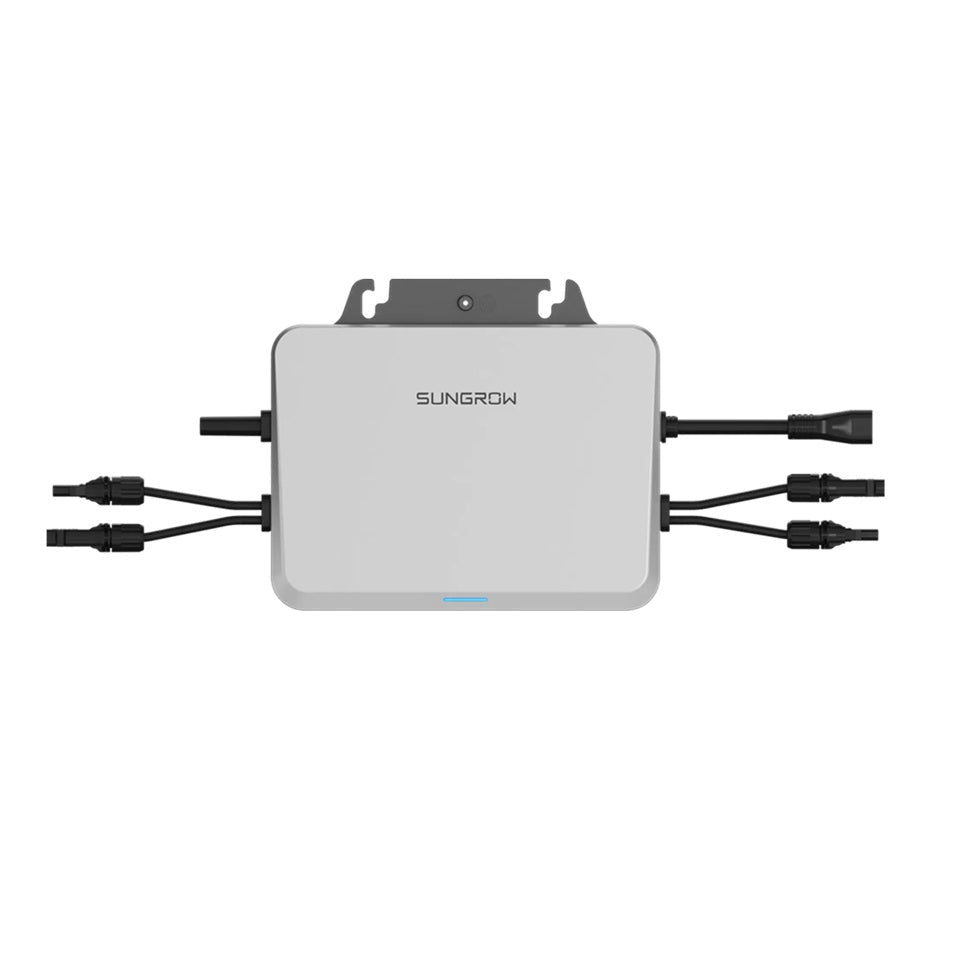

Sungrow S800S Plug and Play Micro-Inverter incl. cable 10m

Sungrow S800S micro-inverter 'balcony' plug and play connector including 10-meter cable EU version.

The Sungrow S800S micro-inverter offers maximum flexibility and efficiency for PV systems. With two MPPTs and two PV inputs, this inverter is ideal for situations with variable light conditions or different roof orientations. Each module performs optimally, independently of the other. The smart design supports easy installation and intuitive monitoring via the Sungrow platform. The S800S is designed for durability, with high efficiency and advanced safety features. For installers striving for top quality and optimal energy yield per panel, this is the micro-inverter of choice.

• Recommended PV module power range: 375 W - 570 W
• Min. PV input voltage: 16 V / 22 V
• MPPT voltage range: 16 V - 60 V
• Number of independent MPP inputs: 2
• Max. PV input current: 16 A * 2
• Rated AC output power: 800 W
• Maximum AC apparent output power: 800 VA
• European efficiency: 96.2 %
• PV module level monitoring: Yes
• Dimensions (W * H * D): 265 * 226 * 42 mm
• Weight: 3.5 kg

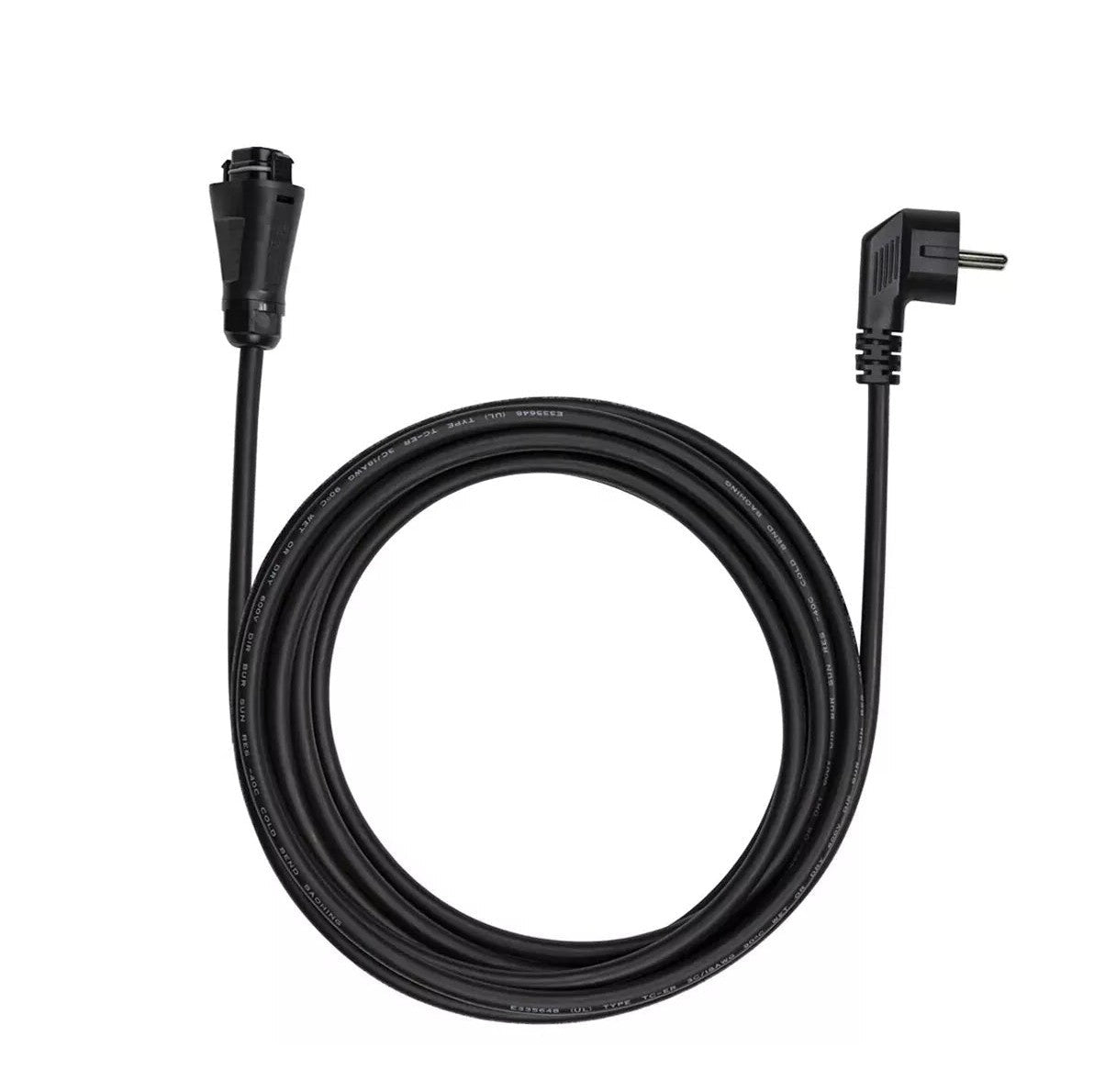

• Includes 10-meter 1.5mm² cable
• Protection degree: IP67
• Communication: WLAN
• Cooling method: Natural cooling
