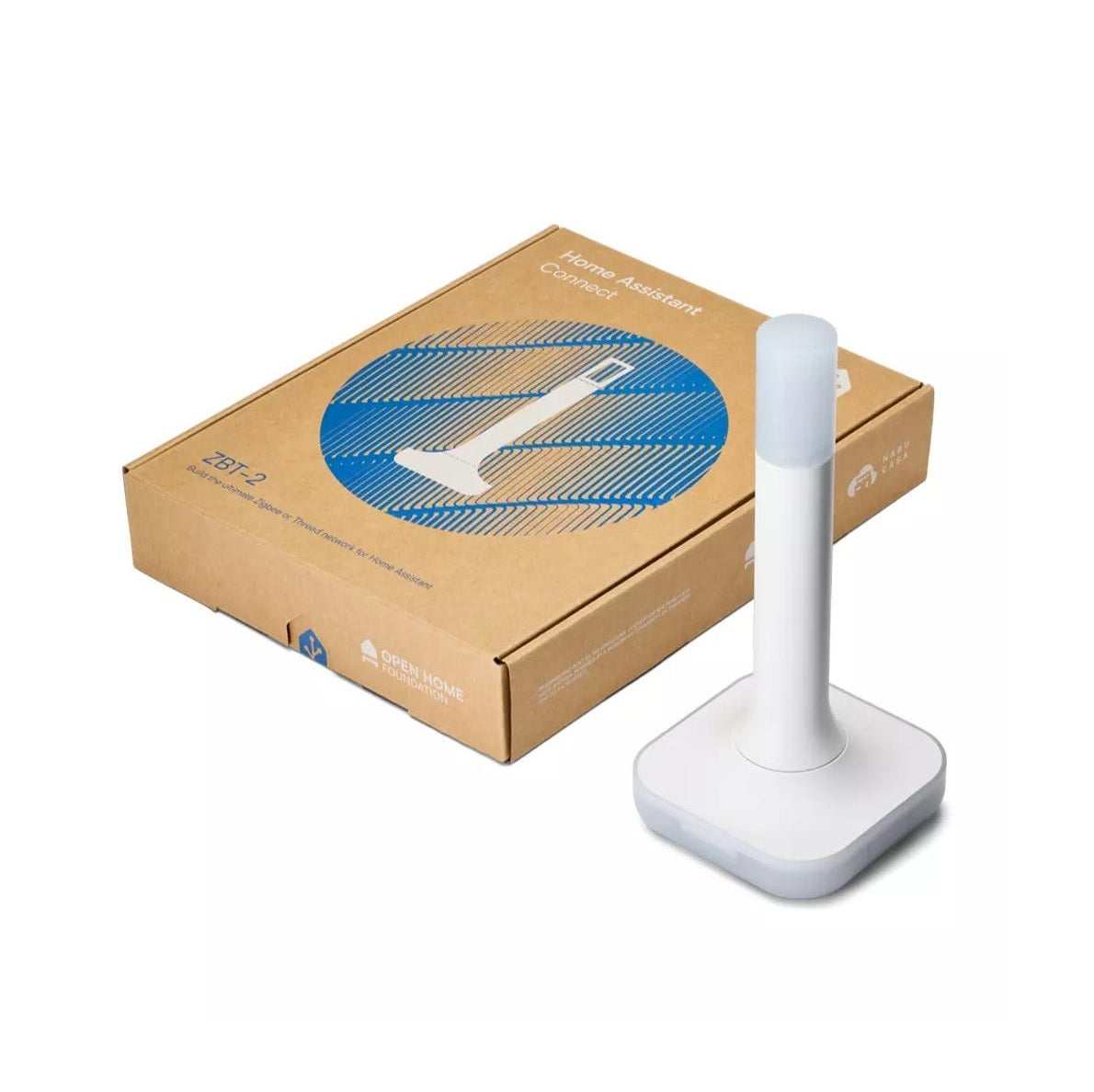

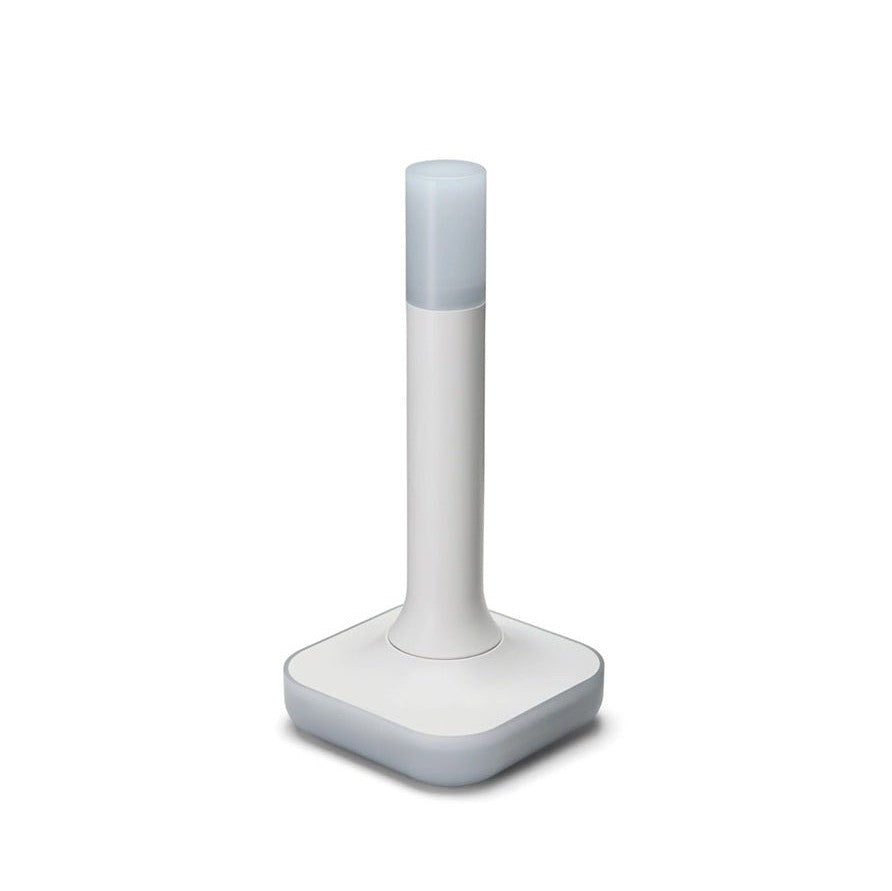

Home Assistant Connect ZBT-2 Antenna Zigbee Thread

Home Assistant Connect ZBT-2 Antenna Zigbee Thread

The easiest way to get started with Zigbee or Thread just got better—with Home Assistant Connect ZBT-2. Its precision-tuned antenna and next-generation chip have been further optimized for outstanding performance and rock-solid stability. Built on the open, second-generation Connect platform, it's easy to use and fits perfectly into your home. Setup and migration are effortless, allowing you to unlock the full potential of Home Assistant with plug-and-play simplicity. Connect a world of Zigbee or Matter devices directly to Home Assistant today.

Specifications:

• Model: NC-ZBT-9741
• Chips: Silicon Labs MG24 (ZigBee / Thread), ESP32-S3 (USB serial bridge)

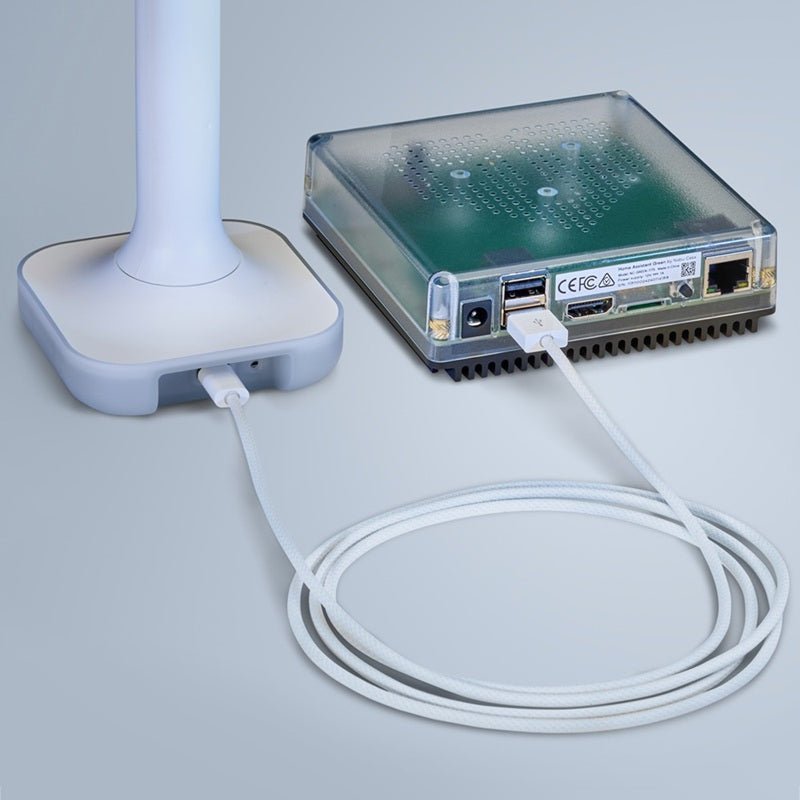

• Power and data: USB Type-C, 5V DC, 500mA
• Protocols: ZigBee 3.0, Thread
• Frequency range: 2400 MHz to 2483.5 MHz
• Antenna gain: 4.16 dBi
• Transmitting power: 8 dBm (rest of the world), 10 dBm (EU)
• Radiation pattern: omnidirectional
• Housing material: polycarbonate (white and translucent)
• Operating temperature: 0°C to 65°C
• Humidity: non-condensing, for indoor use
• Antenna dimensions: 24 mm (diameter), 164 mm (height)
• Dimensions: 83 x 83 x 179 mm
• Weight: 157 g

Package contents:

• Home Assistant Connect ZBT-2
• USB Type-C to USB Type-A Cable
• User documentation
