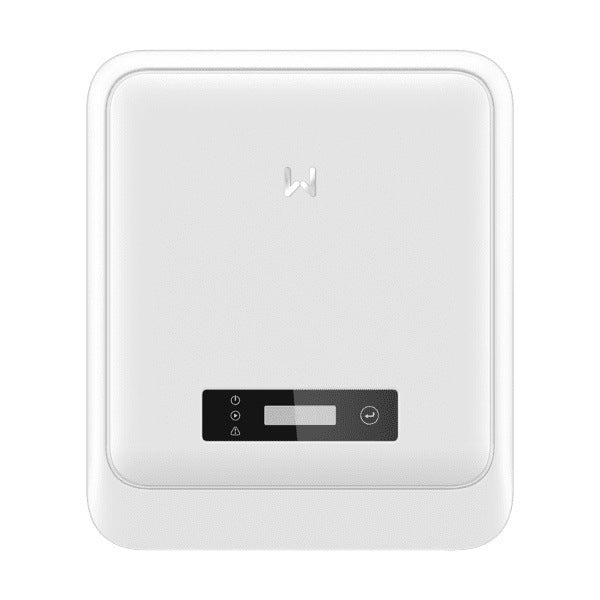

Goodwe GW4200-DNS-30

• 4200W rated output power
• 2 MPPT
• 1 phase
• 10 year warranty
• Delivery time 4-8 working days

Smart and quiet operation with maximized energy efficiency

The DNS G3 inverter contains functionalities to optimize energy efficiency and at the same time operate safely, reliably and quietly. Allows an input current of up to 16 A and is compatible with higher power PV modules. The DNS G3 has a modern design, is ready for home use and offers a flexible solution for home owners who want to future-proof their energy system. Additional functionalities, such as limiting energy exports and monitoring load, can be provided with GoodWe's HomeKit 1000 or GM1000.

With the DNS G3 inverter, homeowners benefit from valuable features such as smart home readiness and a stylish design. The inverter is compatible with SG-ready heat pumps for integration into smart home systems. Additional functionality, including power export restriction and load monitoring, can be provided with GoodWe HomeKit1000 or GM1000. Natural convection is the main cooling method, which allows quiet operation.

The DNS G3 inverters can generate up to 10% extra power compared to the nominal power, increasing the total yield. The low start-up voltage allows power generation from early morning to late evening. With a maximum current input of 16 A per string, the inverter series is compatible with high-power modules. The DNS G3 comes with two MPPTs, improving system design flexibility and energy efficiency.

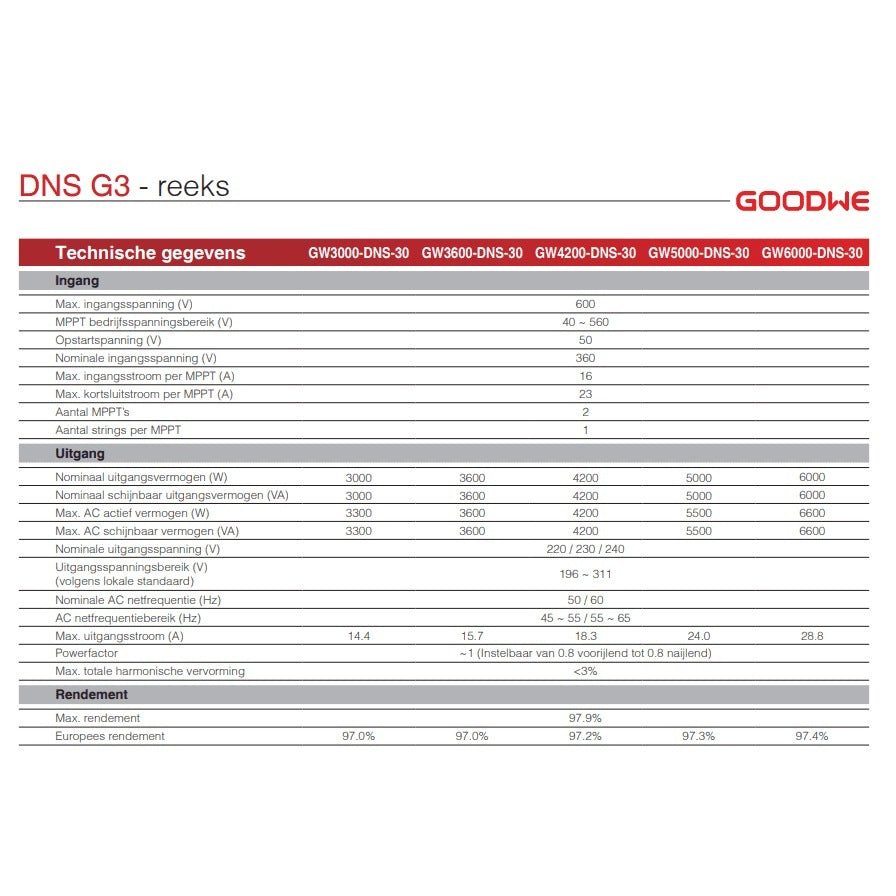

PFD data sheet

PDF manual
