GoodWe GW3600-SBP-20

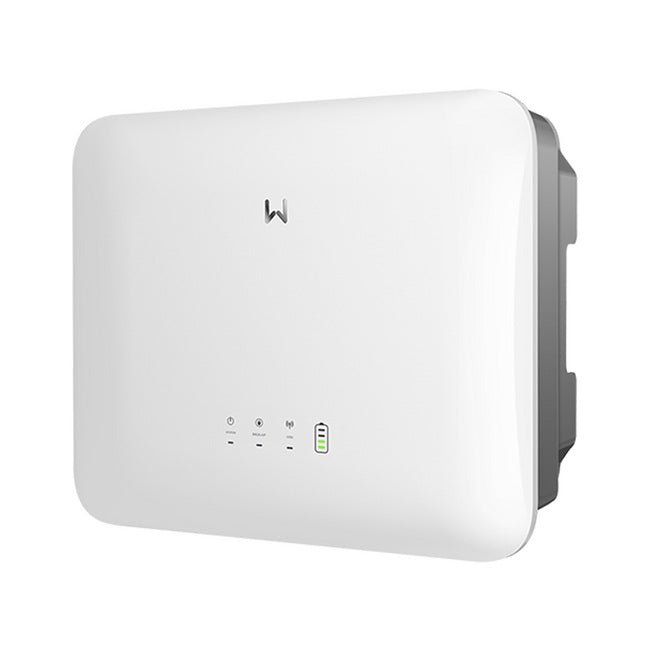

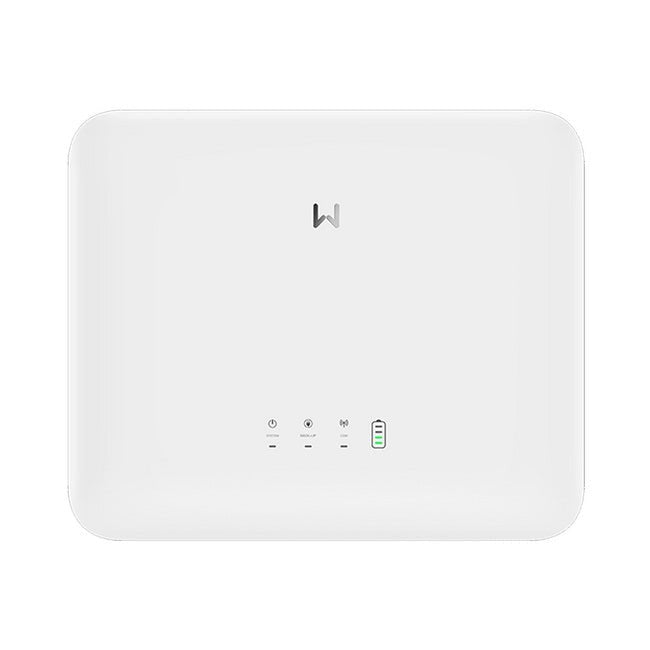

GoodWe 3600-SBP-20 AC coupled inverter. Delivery time on request.

The SBP G2 battery inverter is ideal for upgrades of solar energy systems and retrofit projects and is installed on the AC side of the grid inverter.

• 1-Phase
• Nominal output power 3680VA
• Nominal battery voltage 48V LV
• Wi-Fi
• Incl. GM1000D energy meter with 2 measuring coils
• Synergrid approved (BE)

The GW3600S-BP AC coupled inverter from GoodWe works as battery storage and AC coupling on single-phase systems. To guarantee uninterrupted power supply in case of power outages, the battery can also be charged via the mains. The inverter operates on a Li-Ion battery with a nominal battery voltage of 48 volts. The max. charge and discharge current is 75A. The GW3600-SBP-20-2 is part of the SBP series and has a factory warranty of 5 years.

It is important to know that this inverter is AC coupled and applicable to all systems regardless of brand. Solar panels cannot be connected directly here. The GoodWe SBP series is compatible with the following batteries: BYD LVS 4kWh-24 kWh & GW Lynx Home U. Both the energy meter and data cable for the battery and energy meter are included.

• Switching to UPS level <10ms

• Wide battery voltage range

• Parallel connection
