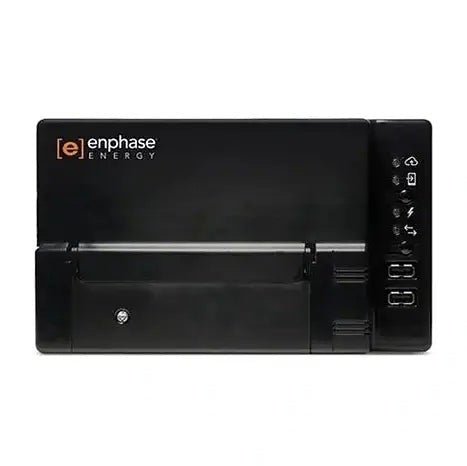

The IQ Gateway Metered provides insight into your energy consumption, remote update capabilities, usage management, and supports smart grid functions.

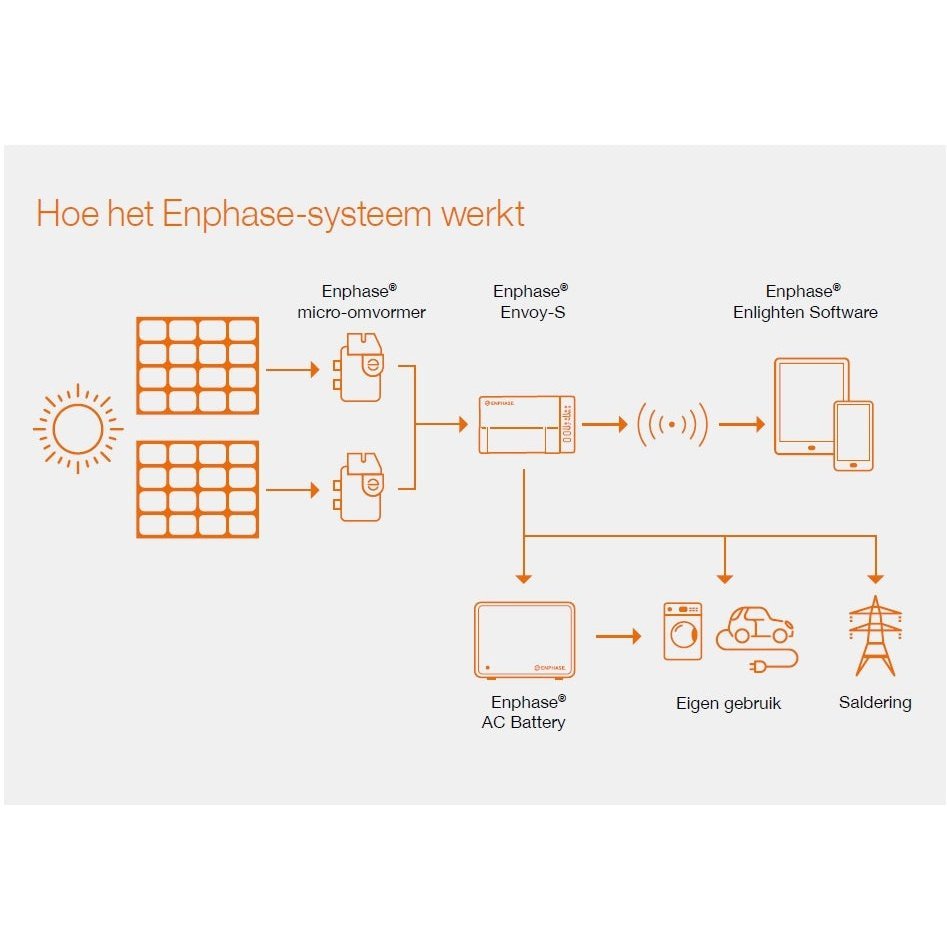

It is an integral part of the Enphase Home Energy Solution, bridging communication between rooftop Enphase Microinverters with cloud-based Enphase monitoring software.
The IQ Gateway Metered can manage grid management functions and monitor PV production and site consumption (metering coil sold separately). It communicates with the microinverters via standard AC power lines in the home and with Enphase monitoring software via cellular or wireless internet connection.

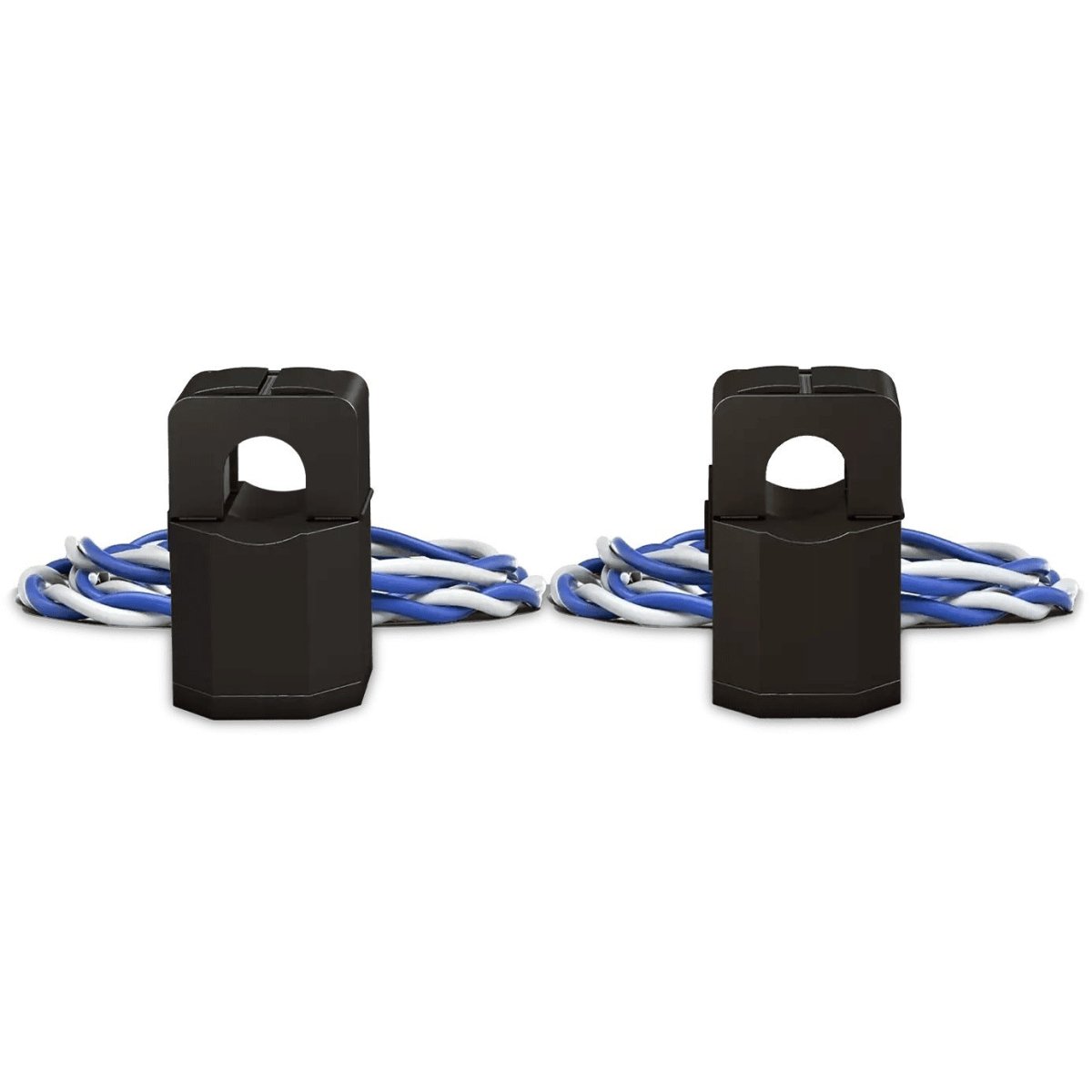

The IQ Gateway Metered is equipped with two measuring coils that enable monitoring of production and consumption with an accuracy of 1%.
- Basic PV production monitoring (+/- 5%)
- Provides web-based monitoring and management
- Bidirectional communication for remote upgrades
- Flexible networking with WiFi, Ethernet or mobile network
- 5 year warranty
Technical specifications
- 230 VAC/50Hz
- 802.11B/G/N - integrated Wi-Fi
- Typical power consumption: 5 W
- Capacity: Up to 600 microinverters
Compatibility
- IQ Microinverters
- IQ Cables and accessories
- M Series Microinverters
- Engage cables and accessories
| IQ Gateway version |
Standard
|
S-Metered
|
| Meter box design |
1-phase
|
1 or 3 phase
|
| Suitable for micro inverter series |
M series, IQ series
|
M series, IQ series
|
| (production) Full system output per day, week, month and total duration |
Yes
|
Yes
|
| (production) Yield per panel |
Yes
|
Yes
|
| (consumption) Energy consumption of the home |
No
|
Yes*
|
| (consumption) Return to the grid |
No
|
Yes*
|
| (consumption) Imported energy from the grid |
No
|
Yes*
|
| Possibility to connect IQ battery (home battery) |
No
|
Yes
|

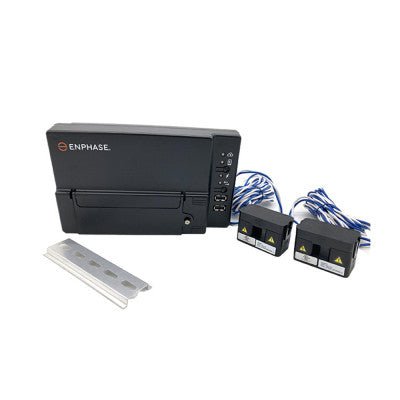

*The correct CT coils/measuring coils must be installed to view consumption data in Enlighten or the app. Two CT coils/measuring coils are included as standard with the IQ Gateway Metered.
| Configuration (regarding Metered): | Number of CT coils: |
| 1-phase PV system on 1-phase meter box | 2 (so no extra needed) |
| 1-phase PV system on 3-phase meter box | 4 (so 2 extra needed) |
| 3-phase PV system on 3-phase meter box | 6 (so 4 extra needed) |
PDF installation and operating manual
