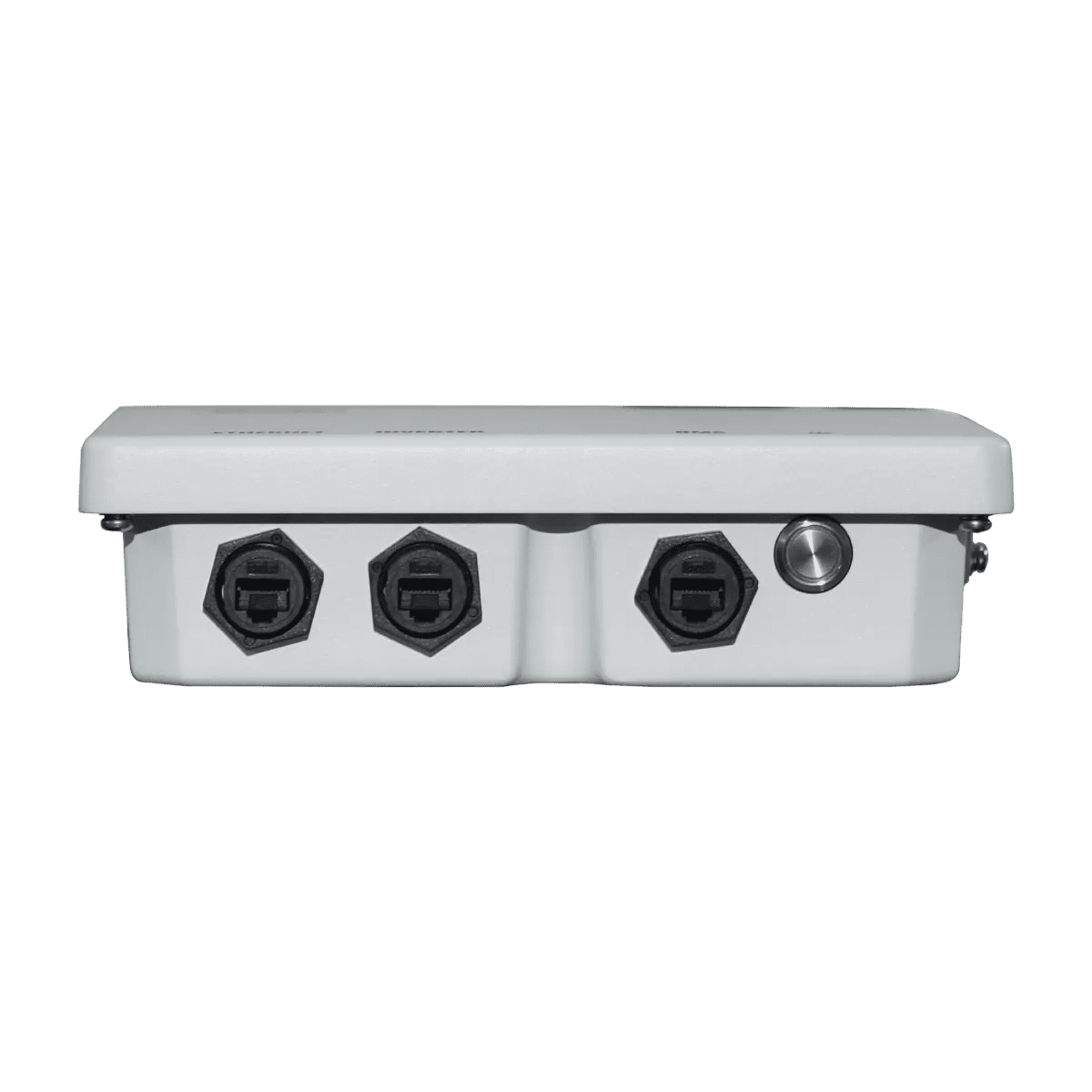

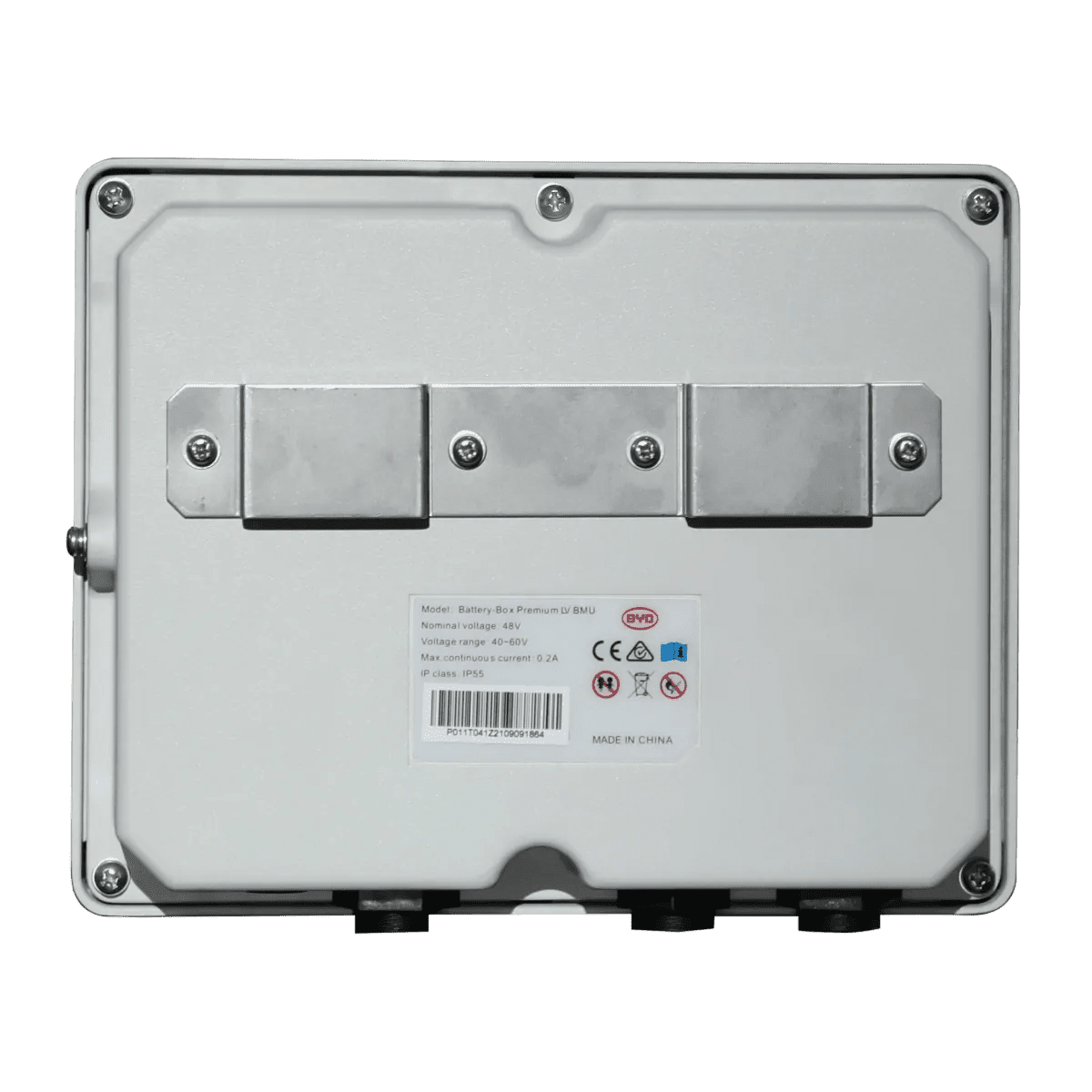

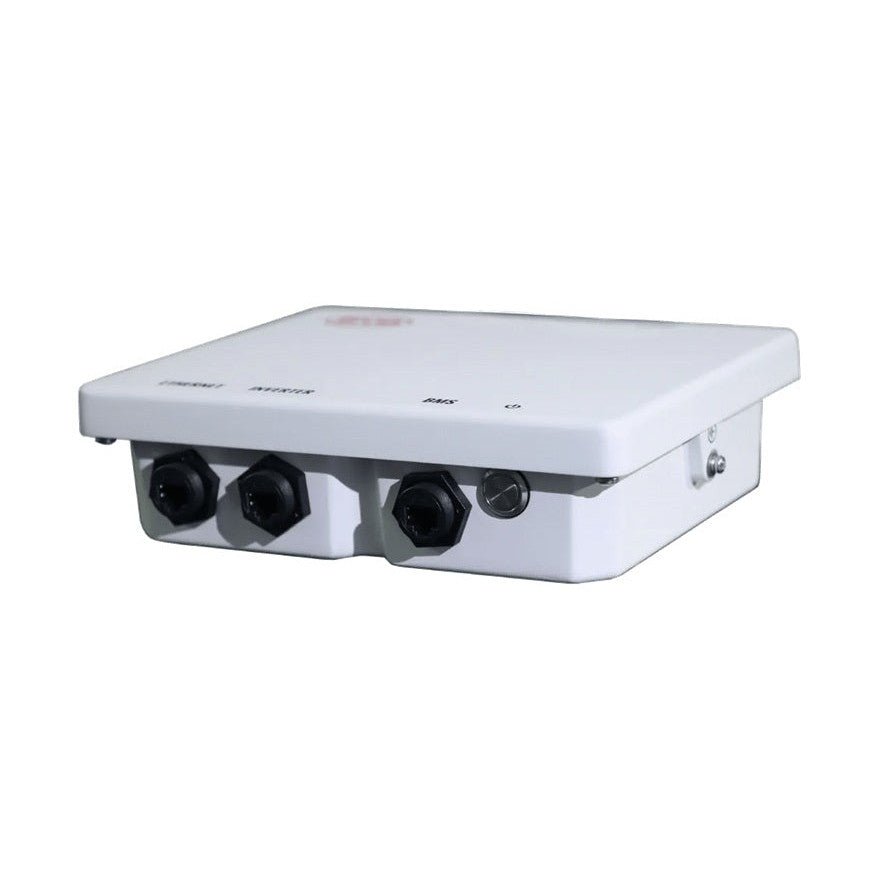

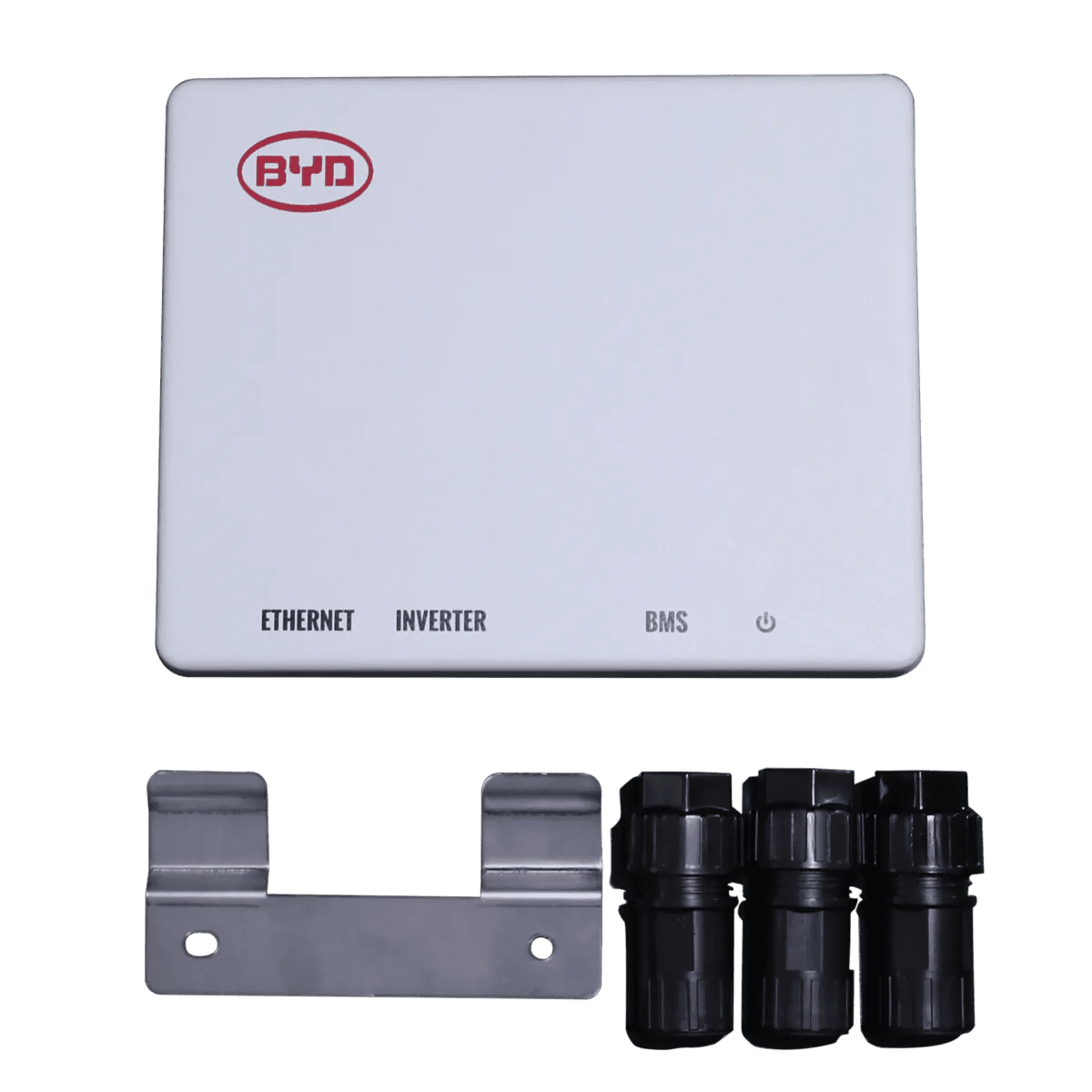

BYD LVS Battery Management Unit

The BMU applies to the BYD Battery-Box Premium LV system(s) (LVS 3.8, LVS 7.7, LVS 11.5, LVS 15.4, LVS 19.2, LVS 23.0 and LVL 15.4) ("Battery-Box") , and acts as a control unit for the system(s).

To complete the home battery you need the following parts:

• BYD Battery Box Premium LVS - Battery module (4kwH)
• BYD Battery Box Premium LVS - PDU + Pedestal (662004)
• Depending on the specific inverter:
  • BYD LVS 35mm2 cable set (430125)
  • BYD LVS 50mm2 cable set (430126)

The BMU is equipped with a WLAN interface as standard. Special tools developed by BYD can communicate with the BMU via this interface. The WLAN name and code are on the label of the BMU.

Communication: Ethernet/CAN/RS 485
Input voltage*: 40-60 V
Input current: 200 mA
Weight: 1kg
Dimensions (L×W×H): 250 mm×122 mm×50 mm
Operating ambient temperature: -10°C to 50°C
Relative humidity (non-condensing): 5% to 85%
Degree of protection (in accordance with IEC 60529): IP21

*BMU is powered by Battery-Box via the network cable. No other power supply is required.
